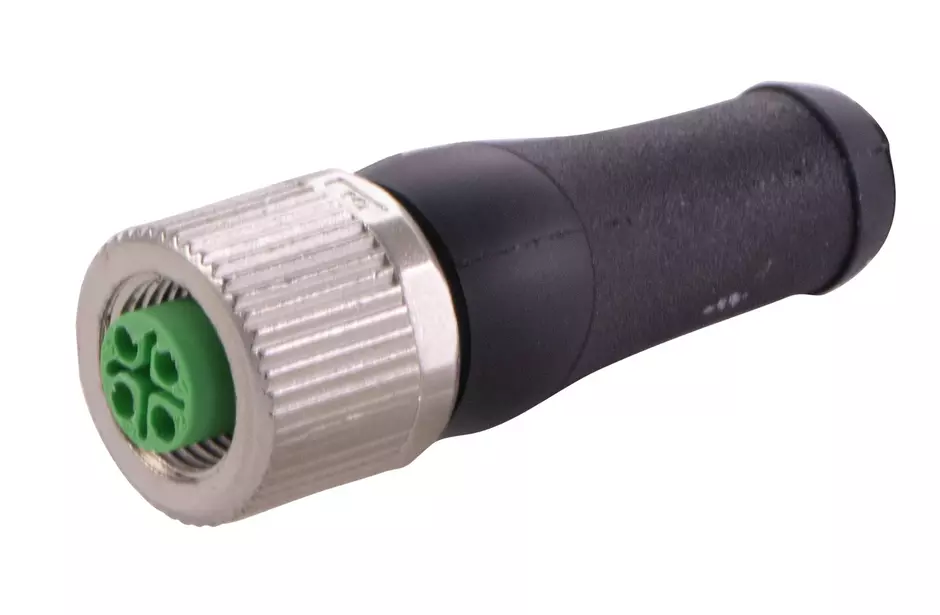

M12 S 3+PE female straight overmolded

Article No.: 21 34 CON 35P4

Image is for illustration purposes only. Please refer to product description.

Cable connector

Article No.: 21 34 CON 35P4

to see prices and availability.

to see prices and availability.

Cable connector

Straight, Overmoulded

Female

S-coding

Crimp termination

Contacts: 4

Rated current: ‌12 A

Screw locking

Degree of protection: IP65 / IP67

Identification

Version

Termination method	Crimp termination
Locking type	Screw locking
Gender	Female
Shielding	Shielded
Number of contacts	4
Number of special contacts	1x PE contact
Number of power contacts	3
Specification of special contacts	PE contact
PE contact	No
FE contact	No
Coding	S-coding

Technical characteristics

Rated current	‌ 12 A
Rated voltage	600 V
Rated impulse voltage	6 kV
Pollution degree	3
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Limiting temperature	-25 ... +85 °C
Tightening torque	‌0.6 Nm
Wrench size (knurled screw / knurled nut)	17
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67
Overvoltage category	III
Isolation group	I (600 ≤ CTI)

Specifications and approvals

PROFINET	No
Specifications	IEC 61076-2-111

Commercial data

Packaging size	1
Country of origin	China
GTIN	5713140813410
eCl@ss	27440116 Circular connector (for field assembly)
UNSPSC 24.0	39121413
