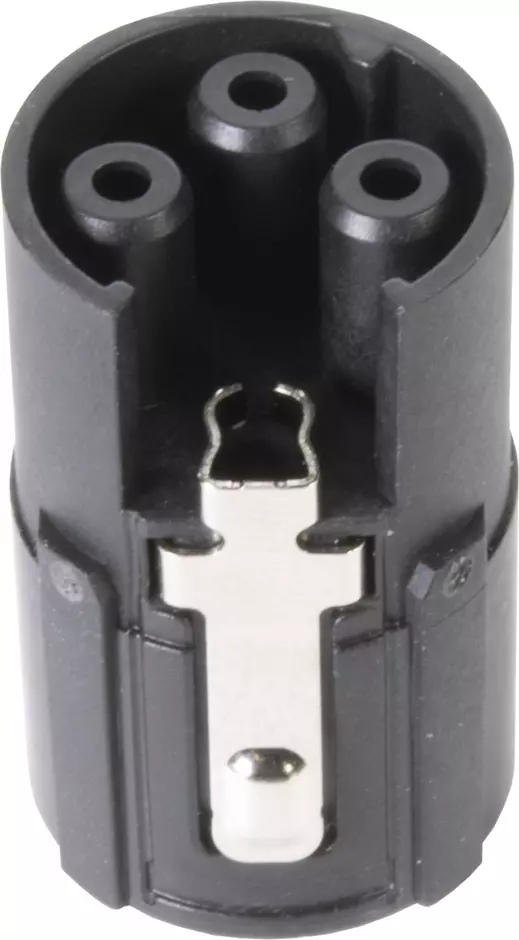

M17-INS-POW-CRT-4P-3+PE-FE

Article No.: 21 17 522 0000

NewConfigurable

Image is for illustration purposes only. Please refer to product description.

NewConfigurable

Inserts

Article No.: 21 17 522 0000

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Polyamide (PA)

Black

Rated current: ‌20 A

Contacts: 4

Identification

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	4
Number of power contacts	3
Number of special contacts	1x PE contact
Specification of special contacts	PE contact

Technical characteristics

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	0.01 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140819481
eCl@ss	27440223 Contact insert for circular connectors
ETIM	EC003557
UNSPSC 24.0	39121421
