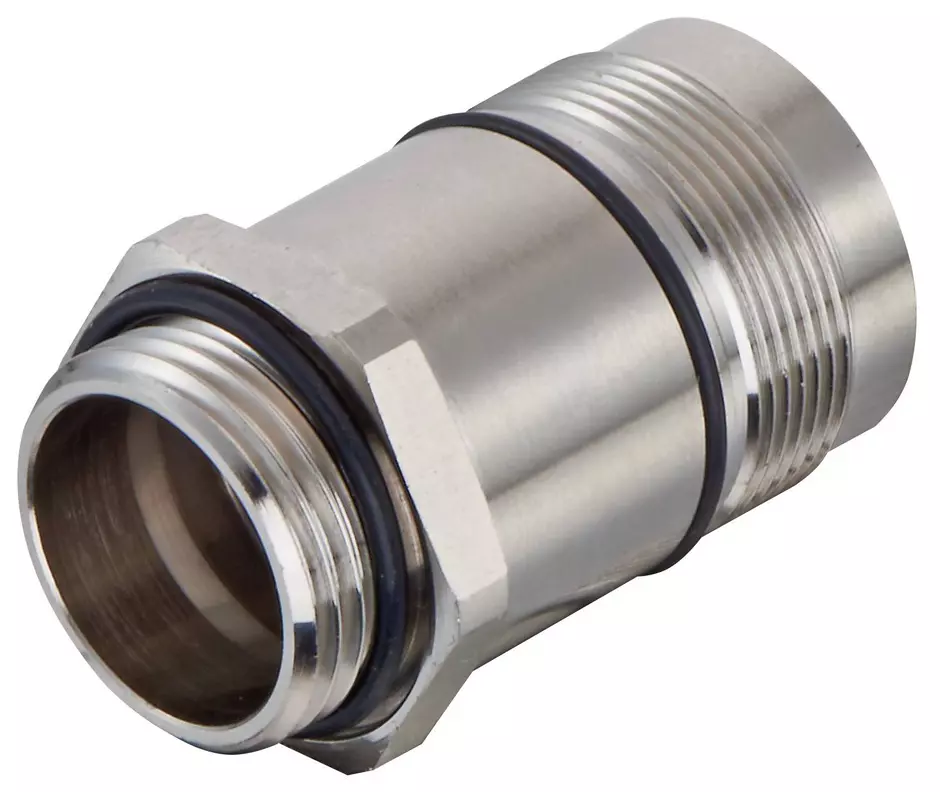

M23 P HBM Front M20x1,5

Article No.: 09 15 600 0303

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Bulkhead mounted housing

Article No.: 09 15 600 0303

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Straight, Front mounting

Size: M23

Screw locking

Material (hood/housing): Copper-zinc alloy

Nickel plated

Material (seal): NBR

Degree of protection: IP67 locked condition, IP69 / IPX9K acc. to ISO 20653 locked condition

Identification

Version

Technical characteristics

Limiting temperature	-40 ... +125 °C
Degree of protection acc. to IEC 60529	IP67 locked condition
Degree of protection acc. to IEC 60529	IP69 / IPX9K acc. to ISO 20653 locked condition

Material properties

Material (hood/housing)	Copper-zinc alloy
Surface (hood/housing)	Nickel plated
Material (seal)	NBR
Colour (seal)	Black
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076

Commercial data

Packaging size	5
Net weight	32.02 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140184343
eCl@ss	27440224 Shell for circular connectors
ETIM	EC003556
UNSPSC 24.0	39121405
