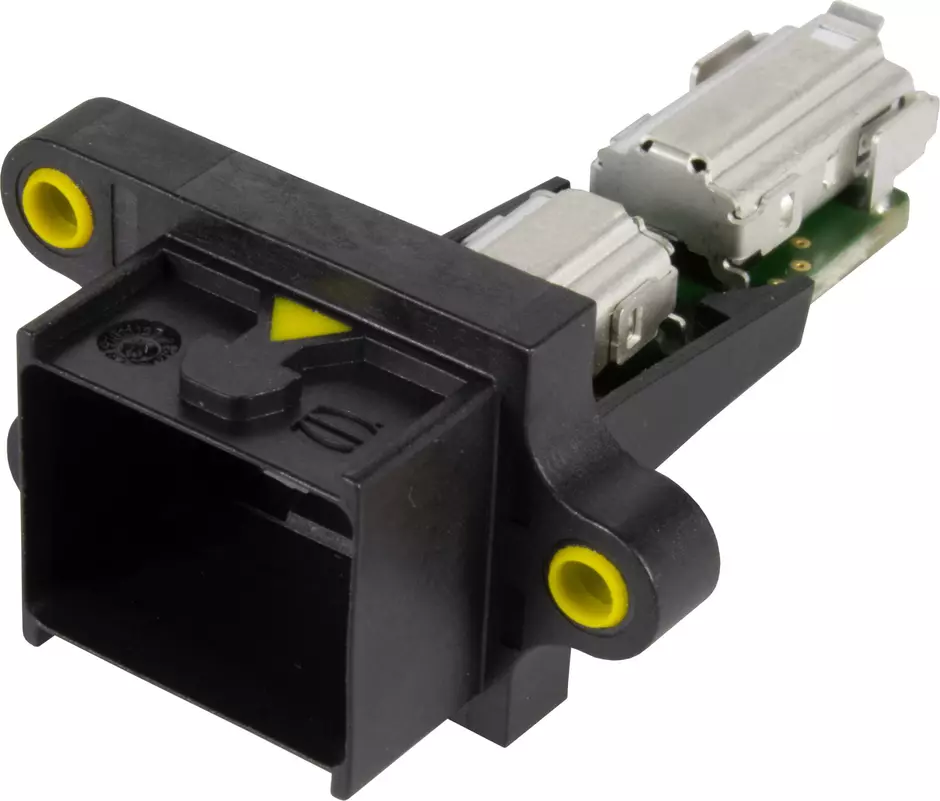

MPP-PFT-T1/T1-2p-F-P

Article No.: 09 51 222 0001

New

Image is for illustration purposes only. Please refer to product description.

New

Connectors

Article No.: 09 51 222 0001

to see prices and availability.

to see prices and availability.

Connectors

Panel feed trough set

Rated current: ‌1.5 A

Contacts: 2 + shielding

Copper alloy

Tin plated

Bulkhead mounted housing

PushPull

Material: Polybutylene terephthalate (PBT)

Degree of protection: IP65 / IP67

Identification

Version

Shielding	Fully shielded, 360° shielding contact
Number of contacts	2
further contacts	+ shielding
Locking type	PushPull

Technical characteristics

Rated current	‌ 1.5 A
Rated voltage	‌ 60 V DC
Transmission characteristics	1 GHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65 / IP67
Test voltage UDC	1 kV (contact-contact)
Test voltage UDC	2.25 kV (contact-ground)

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Tin plated
Material (hood/housing)	Polybutylene terephthalate (PBT)
Colour (hood/housing)	Black
Material (seal)	PTS
Colour (seal)	Yellow
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R26

Specifications and approvals

Specifications	IEC 63171-6

Commercial data

Packaging size	1
Net weight	7.5 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140570665
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
