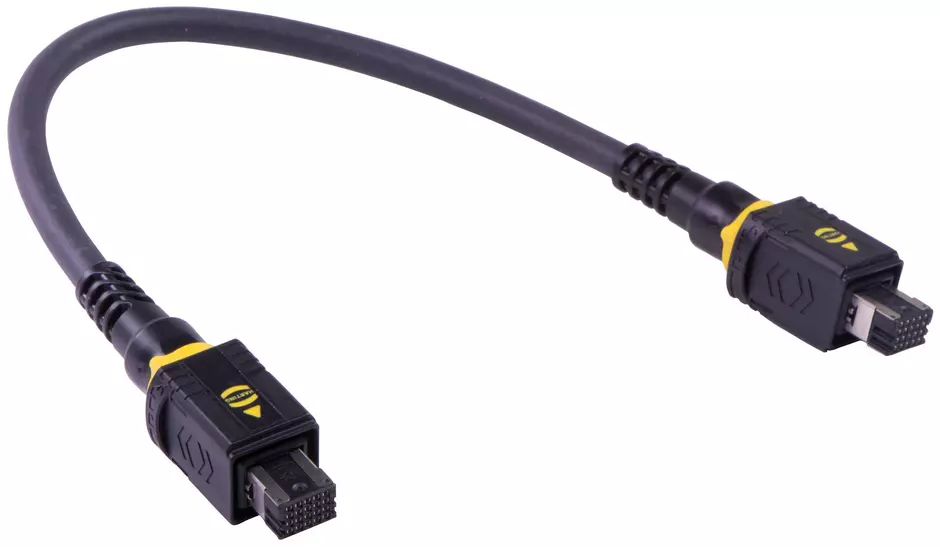

PPV4 2.0 Signal 20p d.e. 20x0,14qmm 0,5m

Article No.: 09 48 353 5848 005

Image is for illustration purposes only. Please refer to product description.

Cable assemblies

Article No.: 09 48 353 5848 005

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on both sides

Copper cable (round)

Wiring 1:1

Cable length: 0.5 m

Parts list specification

Type of cable	Interconnection Cable w. drain wire Show details
Connector 1	PushPull V4 2.0 Signal 20pole Show details
Connector 2	PushPull V4 2.0 Signal 20pole Show details

Identification

Version

Technical characteristics

Contact spacing (termination side)	1.9 mm
Contact spacing (termination side)	2 mm
Contact spacing (mating side)	1.9 mm
Contact spacing (mating side)	2 mm
Rated current	‌ 2 A
Rated voltage	50 V
Clearance distance	≥ 1.2 mm
Creepage distance	≥ 1.9 mm
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-40 ... +80 °C
Insertion force	‌ 50 N
Withdrawal force	‌ 50 N
Mating cycles	≥ 100
Test voltage Ur.m.s.	2 kV (contact-contact)
Test voltage Ur.m.s.	2 kV (contact-ground)
Isolation group	I (600 ≤ CTI)
Vibration resistance	10-500 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
Shock resistance	50 g / 11 ms, 3 shocks / axis and direction

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated Termination side
Surface (contacts)	Silver plated Mating side
Material (cable)	PUR (polyurethane)
Colour (cable)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	IEC 61076-3-106 Variant 4 (V4)

Commercial data

Packaging size	1
Net weight	1 g
Country of origin	Latvia
European customs tariff number	85444290
GTIN	5713140246201
eCl@ss	27060390 Ready-made data cable (unspecified)
ETIM	EC002599
UNSPSC 24.0	26121600
