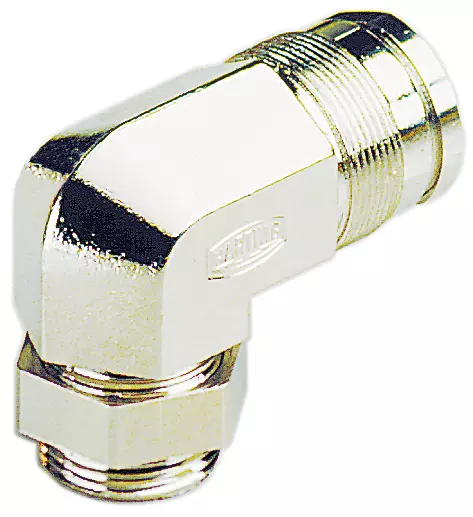

R 15-egw

Article No.: 09 15 000 0122

Image is for illustration purposes only. Please refer to product description.

Screw mounted housing

Article No.: 09 15 000 0122

to see prices and availability.

to see prices and availability.

Screw mounted housing

Angled

Screw locking

Material (hood/housing): Aluminium

Material (seal): NBR

Degree of protection: IP65

Identification

Version

Locking type	Screw locking

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65

Material properties

ECHA SCIP number	6fb545c1-f438-46c2-b07a-8552e7e5a3d7
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Aluminium
Material (seal)	NBR

Commercial data

European customs tariff number	85389099
Packaging size	10
Net weight	87.54 g
Country of origin	Germany
GTIN	5713140021624
eCl@ss	27440224 Shell for circular connectors
ETIM	EC003556
UNSPSC 24.0	39121405
