SEK 17-14(2)M-S32-AU KONTAKT 1

Article No.: 09 17 014 9622

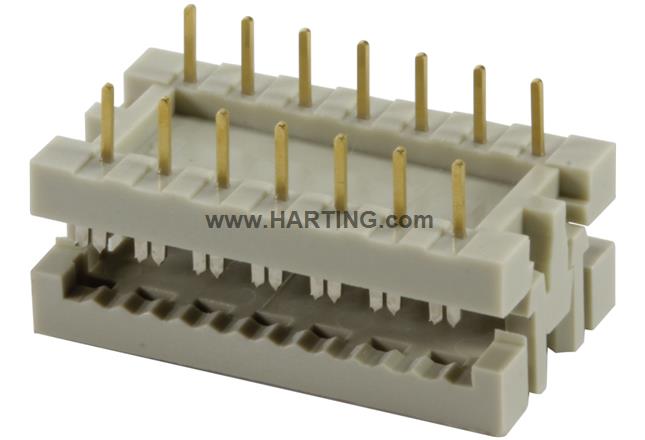

Image is for illustration purposes only. Please refer to product description.

DIP connector

Article No.: 09 17 014 9622

to see prices and availability.

to see prices and availability.

DIP connector

Rated current: ‌1 A

Thermoplastic resin (PC)

Beige

Contacts: 14

Identification

Version

Technical characteristics

Contact rows	2
Contact spacing (termination side)	2.54 mm
Contact spacing (mating side)	1.27 mm
Rated current	‌ 1 A
Insulation resistance	>10¹² Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-40 ... +125 °C
Test voltage Ur.m.s.	0.5 kV

Material properties

Material (insert)	Thermoplastic resin (PC)
Colour (insert)	Beige
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
ECHA SCIP number	60b1a572-bb3f-476f-9307-b7d1688bd90c
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	IEC 60603-13

Commercial data

Packaging size	130
Net weight	3.846 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140024045
eCl@ss	27460202 PCB connector (conductor connection)
ETIM	EC002637
UNSPSC 24.0	39121415
