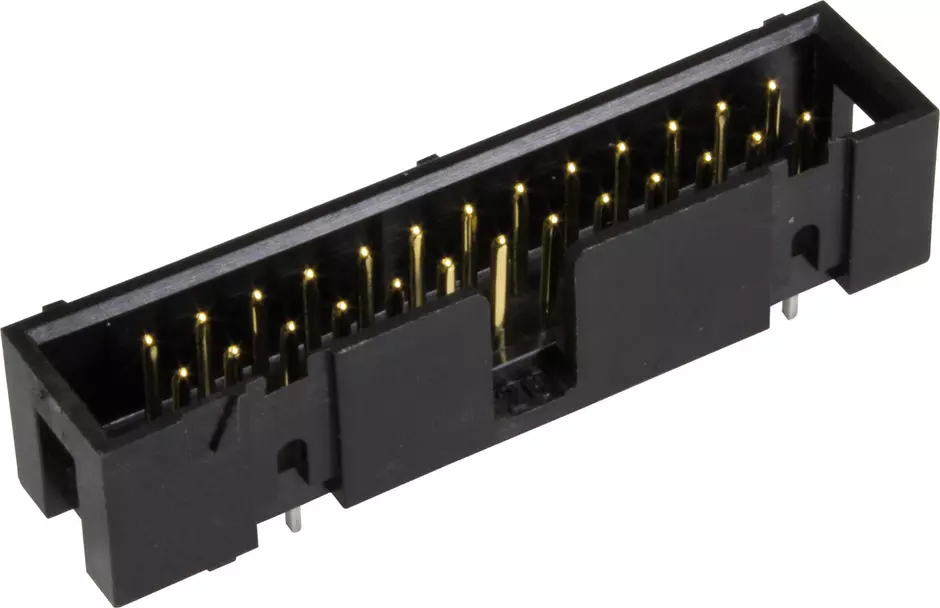

SEK-18 SV MA LP STR29 10P PL2 BLACK

Article No.: 09 18 510 6324 001

Image is for illustration purposes only. Please refer to product description.

Male connector

Article No.: 09 18 510 6324 001

to see prices and availability.

to see prices and availability.

Male connector

Wave soldering termination

Rated current: ‌1 A

Contacts: 10

Straight

Copper alloy

Noble metal over Ni Mating side, Sn over Ni Termination side

Performance level: 2, acc. to IEC 60603-13

Thermoplastic resin (PBT)

Black

Identification

Version

Technical characteristics

Contact rows	2
Contact spacing (termination side)	2.54 mm
Rated current	‌ 1 A
Insulation resistance	>10⁹ Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Performance level	2
Performance level	acc. to IEC 60603-13
Mating cycles	≥ 250
Test voltage Ur.m.s.	1 kV
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Material (insert)	Thermoplastic resin (PBT)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	100
Net weight	2.5 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140214507
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
