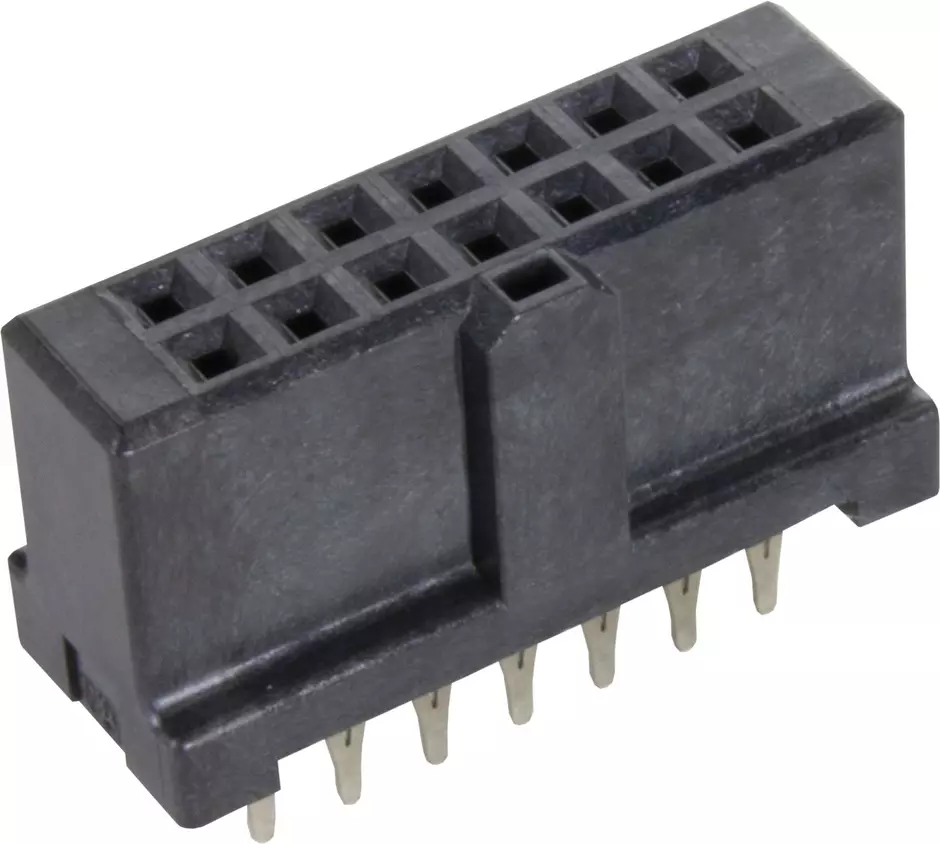

SEK mezz Fe 14P Press-in 4.5mm PL2

Article No.: 09 19 514 6829

New

Image is for illustration purposes only. Please refer to product description.

New

Female connector

Article No.: 09 19 514 6829

to see prices and availability.

to see prices and availability.

Female connector

Press-in termination

Rated current: ‌1 A

Contacts: 14

Straight

Copper alloy

Nickel plated Termination side, Au over Pd/Ni Mating side

Performance level: 2

Liquid crystal polymer (LCP)

Black

Identification

Version

Termination method	Press-in termination
Connection type	PCB to PCB
Connection type	Motherboard to daughtercard
Number of contacts	14
Termination length	4.5 mm

Technical characteristics

Contact rows	2
Contact spacing (termination side)	2.54 mm
Rated current	‌ 1 A
Insulation resistance	>10⁹ Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 28 N
Withdrawal force	≤ 28 N
Performance level	2
Mating cycles	≥ 250
Test voltage Ur.m.s.	1 kV
Isolation group	IIIa (175 ≤ CTI < 400)
PCB thickness	‌1.6 mm +1.6 ‌

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Nickel plated Termination side
Surface (contacts)	Au over Pd/Ni Mating side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	100
Net weight	4.03 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140211070
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
