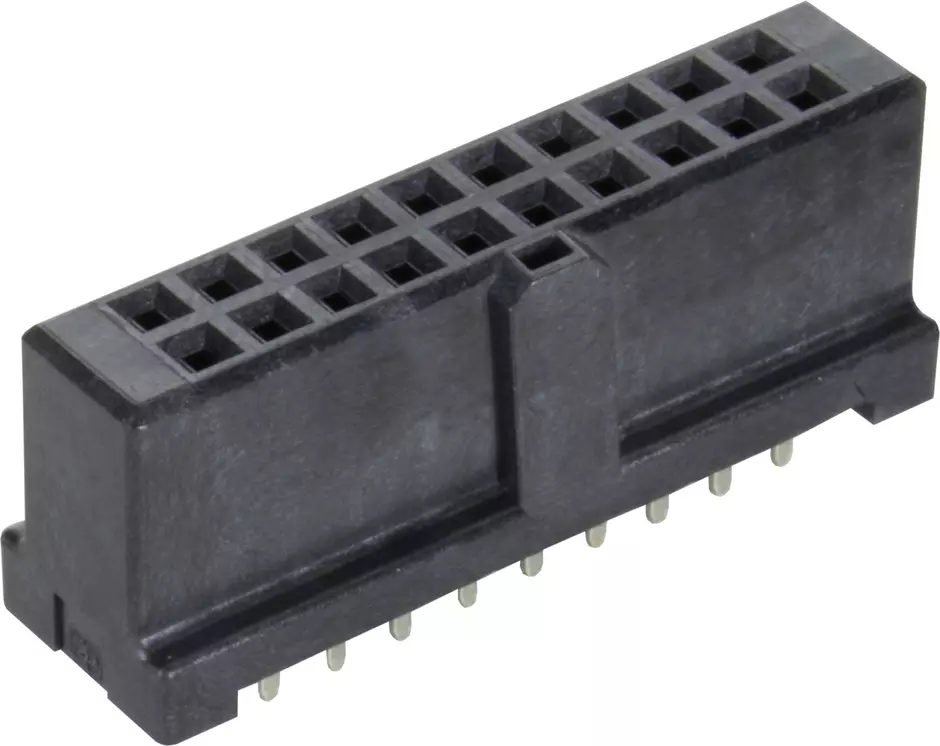

SEK mezz Fe 20P THT 2.9mm PL2

Article No.: 09 19 520 6824

New

Image is for illustration purposes only. Please refer to product description.

New

Female connector

Article No.: 09 19 520 6824

to see prices and availability.

to see prices and availability.

Female connector

Reflow soldering termination (THR), Wave soldering termination

Rated current: ‌1 A

Contacts: 20

Straight

Copper alloy

Sn over Ni Termination side, Au over Pd/Ni Mating side

Performance level: 2

Liquid crystal polymer (LCP)

Black

Identification

Version

Termination method	Reflow soldering termination (THR)
Termination method	Wave soldering termination
Connection type	PCB to PCB
Connection type	Motherboard to daughtercard
Number of contacts	20
Termination length	2.9 mm

Technical characteristics

Contact rows	2
Contact spacing (termination side)	2.54 mm
Rated current	‌ 1 A
Insulation resistance	>10⁹ Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-55 ... +125 °C (during reflow soldering max. +240 °C for 60 s)
Insertion force	≤ 40 N
Withdrawal force	≤ 40 N
Performance level	2
Mating cycles	≥ 250
Test voltage Ur.m.s.	1 kV
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Sn over Ni Termination side
Surface (contacts)	Au over Pd/Ni Mating side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	100
Net weight	6.4 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140212343
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
