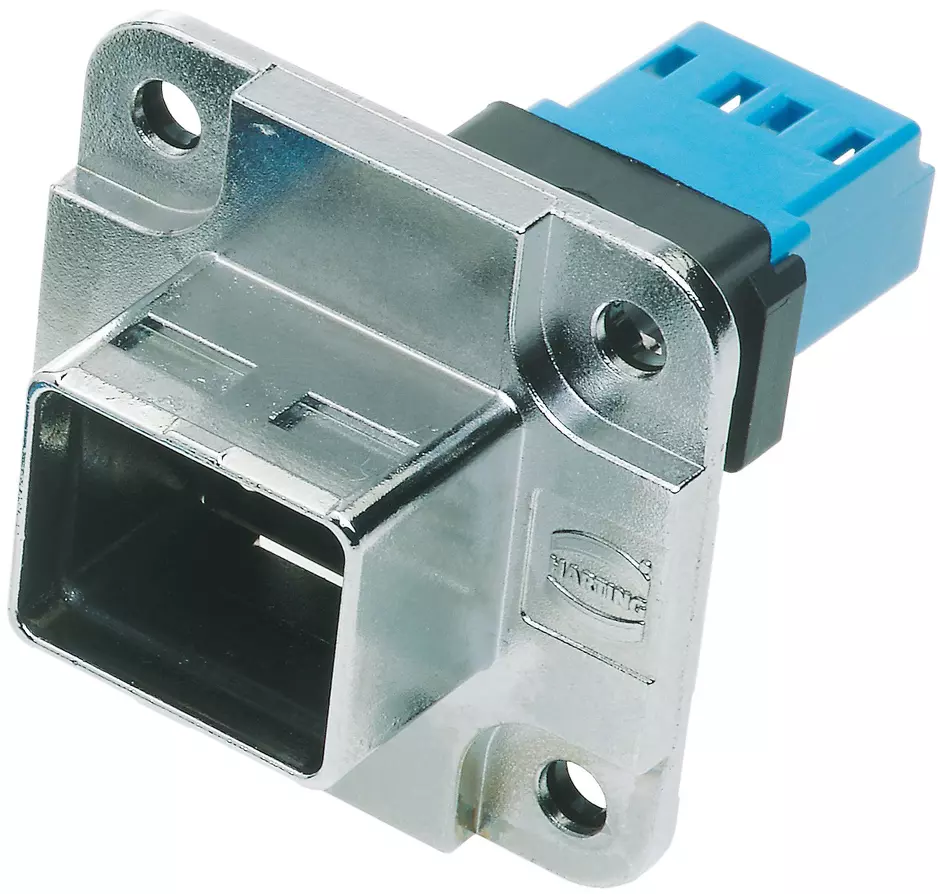

Set PP Metal receptacle SM GOF adapter

Article No.: 09 57 468 0501 000

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 57 468 0501 000

to see prices and availability.

to see prices and availability.

Connectors

Panel feed trough set

Contacts: 2

Easy Install

PushPull

Material: Metal

Degree of protection: IP65

Identification

Version

Locking type	PushPull
Number of contacts	2

Technical characteristics

Limiting temperature	[-40] ... [+70 °C]
Mating cycles	200
Degree of protection acc. to IEC 60529	IP65

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Metal
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Approvals	DNV GL
Specifications	IEC 61076-3-106 Variant 4 (V4)

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	27.2 g
Country of origin	Romania
GTIN	5713140223806
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
