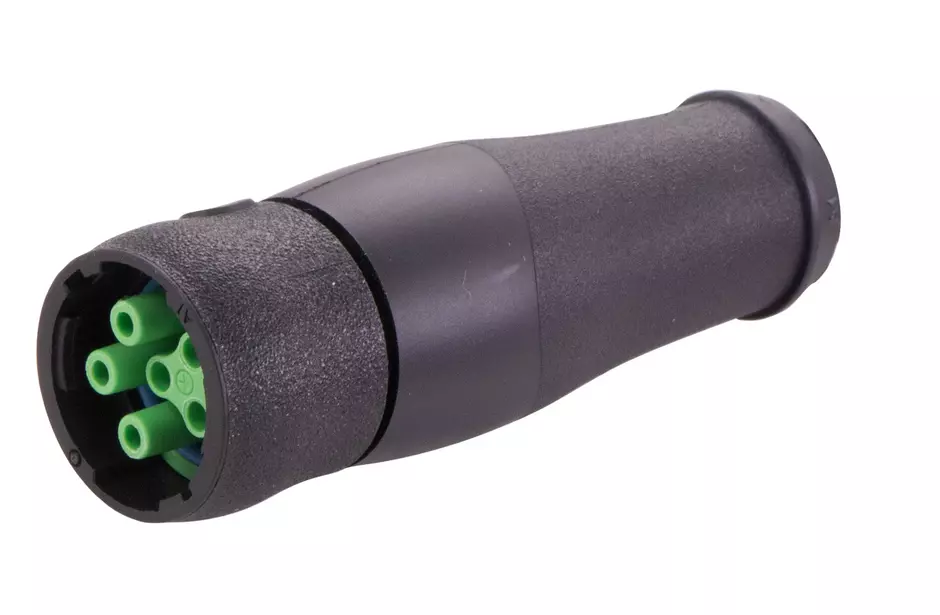

Size 15 6pole female straight overmolded

Article No.: 21 34 CON 29P6

Image is for illustration purposes only. Please refer to product description.

Cable connector

Article No.: 21 34 CON 29P6

to see prices and availability.

to see prices and availability.

Cable connector

Overmoulded

Female

Crimp termination

Polyamide (PA)

Green

Contacts: 6

Conductor cross-section: 2.5 mm²

Degree of protection: IP65 / IP67

Identification

Version

Technical characteristics

Conductor cross-section (mm²)	2.5 mm²
Conductor cross-section (AWG)	AWG 14
Rated voltage (signal)	‌ 63 V AC/DC
Rated voltage (power)	‌ 600 V AC
Pollution degree	3
Rated current (signal)	10 A
Rated impulse voltage (signal)	1.5 kV
Pollution degree (signal)	3
Rated current (power)	16 A
Rated impulse voltage (power)	6 kV
Pollution degree (power)	3
Limiting temperature	-30 ... +85 °C
Degree of protection acc. to IEC 60529	IP65 / IP67
Isolation group	I (600 ≤ CTI)

Material properties

Specifications and approvals

PROFINET	No
