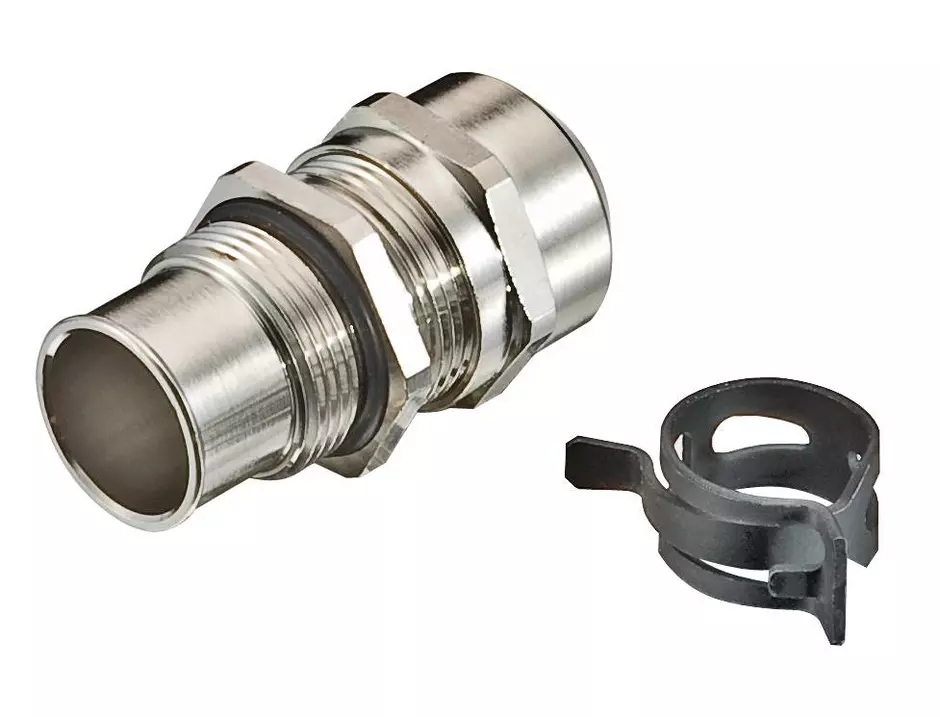

Spec. Cable Gland M25 Cable-Ø13-21 SBC

Article No.: 19 00 000 5019

Image is for illustration purposes only. Please refer to product description.

Cable gland

Article No.: 19 00 000 5019

to see prices and availability.

to see prices and availability.

Cable gland

EMC version

M25

Clamping range: 13 ... 21 mm

Material (cable glands): Brass

Material (clamping ring): Polyamide (PA)

IP65 / IP68

Wrench size: 32

Identification

Category	Accessories
Series of hoods/housings	Han^® HPR EasyCon
Type of accessory	Cable gland
Description of the accessory	EMC version

Technical characteristics

Tightening torque	‌10 Nm
Wrench size	32
Limiting temperature	-40 ... +100 °C
Degree of protection acc. to IEC 60529	IP65 / IP68
Size	M25
Clamping range	13 ... 21 mm
Width across corners	33.4 mm

Material properties

Material (cable glands)	Brass
Material (seal)	EPDM
Material (clamping ring)	Polyamide (PA)
Surface (accessories)	Nickel plated
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Commercial data

Packaging size	1
Net weight	105.56 g
Country of origin	Germany
European customs tariff number	84849000
GTIN	5713140123588
eCl@ss	27140803 Cable gland EMC (electrical installation)
ETIM	EC000441
UNSPSC 24.0	39121431
