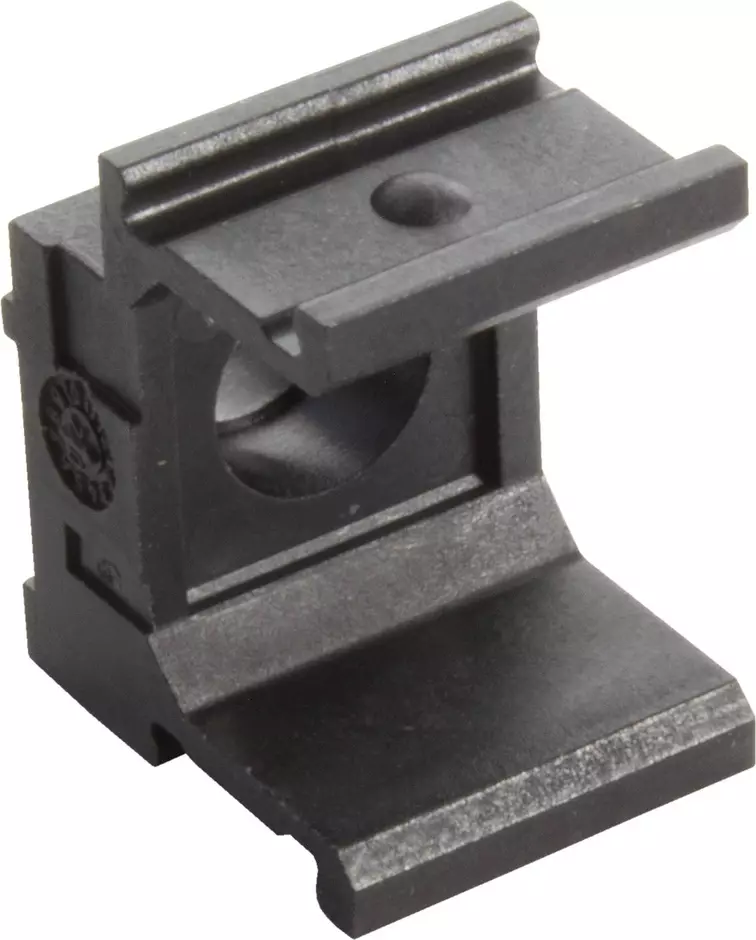

har-modular M1 module male str. w.guide

Article No.: 02 53 901 0401

New

Image is for illustration purposes only. Please refer to product description.

New

Male connector

Article No.: 02 53 901 0401

to see prices and availability.

to see prices and availability.

Male connector

Contacts: 1

Straight

Polyamide (PA)

Black

Identification

Version

Width of the module	10.16 mm
Connection type	Mezzanine
Number of contacts	1
Details	Please order contacts separately.

Technical characteristics

Clearance distance	‌4 mm in the module
Clearance distance	‌2 mm to module edge
Creepage distance	‌4 mm in the module
Creepage distance	‌2 mm to module edge
Insulation resistance	>10¹¹ Ω
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 10 N
Withdrawal force	≤ 10 N
Mating cycles	≥ 500
Test voltage Ur.m.s.	1.55 kV
Isolation group	I (600 ≤ CTI)
Hot plugging	No
Moisture Sensitivity Level (MSL)	1 acc. to ECA/IPC/JEDEC J-STD-020D

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	20
Net weight	0.9 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140197732
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
