HARTING T1 Industrial

Single Pair Ethernet (SPE) ensures for the first time the cost-effective use of Ethernet in every aspect of industrial automation. Single pair Ethernet uses one pair of wires to transmit data at speeds up to 1GBit/s. This makes SPE ideal for industrial applications in the age of Industry 4.0 and IIoT. HARTING T1 Industrial is the SPE mating face for industrial applications according to IEC 63171-6.

Device Connectivity Cable Connectors Cable Assemblies Data connectors Single Pair Ethernet.psd

Series highlights

Only one pair of copper wires
Reduced costs and weight
Connects to the field level without any barrier
Enabler for IIoT
Additinal power transmisson PoDL

Filter

From
To

Products 190

Relevance
T1 Industrial Jack AH IP20
PCB connector

T1 Industrial Jack AH IP20

Article No.: 09 45 281 2810

Angled, Short versionReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

T1 Ind.jack,T1-M12 str.,8mm
New
PCB connector

T1 Ind.jack,T1-M12 str.,8mm

Article No.: 21 03 339 2201

StraightReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

T1 Industrial plug male connector V3
Cable connector

T1 Industrial plug male connector V3

Article No.: 09 45 181 2810 XL

StraightCrimp terminationMaleRated current: ‌4 AContacts: 2 + shieldingConductor cross-section: 0.08 ... 0.32 mm² StrandedBulk packaging

T1 Industrial jack AH IP20
New
PCB connector

T1 Industrial jack AH IP20

Article No.: 09 45 281 2810 333

Angled, Short versionReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD
New
PCB connector

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD

Article No.: 21 03 339 2220

Straight, incl. housing, for rear mountingReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD
New
PCB connector

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD

Article No.: 21 03 339 2221

Straight, incl. housing, for front mountingReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

M12-PCB-THR-2PC-2P-SPE-F-ANG-SHLD
New
PCB connector

M12-PCB-THR-2PC-2P-SPE-F-ANG-SHLD

Article No.: 21 03 339 4211

Angled, incl. housing, for front mountingReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

preLink PCB to T1 module
Adapter PCB

preLink PCB to T1 module

Article No.: 20 82 008 0002

preLink® PCB to T1 Industrial modulepreLink® IDC insulation displacement terminationConductor cross-section: 0.1 ... 0.12 mm² 0.22 ... 0.32 mm²

T1 SPE IP20 1x2xAWG26/7 PUR 1,0m
New
Cable assemblies

T1 SPE IP20 1x2xAWG26/7 PUR 1,0m

Article No.: 33 28 020 2001 010

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 1 m

T1 Ind. Jack M12, angled
New
PCB connector

T1 Ind. Jack M12, angled

Article No.: 21 03 339 4201

AngledReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD
New
PCB connector

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD

Article No.: 21 03 339 2210

Straight, incl. housing, for rear mountingReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD
New
PCB connector

M12-PCB-THR-2PC-2P-SPE-F-STR-SHLD

Article No.: 21 03 339 2211

Straight, incl. housing, for front mountingReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

T1 SPE IP20 1x2xAWG26/7 PUR 2,0m
New
Cable assemblies

T1 SPE IP20 1x2xAWG26/7 PUR 2,0m

Article No.: 33 28 020 2001 020

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 2 m

T1 SPE IP20 1x2xAWG26/7 PUR 10m
New
Cable assemblies

T1 SPE IP20 1x2xAWG26/7 PUR 10m

Article No.: 33 28 020 2001 100

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 10 m

M12-SD-CC-CRIMP-2P-SPE-M-STR-SHLD
New
Cable connector

M12-SD-CC-CRIMP-2P-SPE-M-STR-SHLD

Article No.: 21 03 839 1205

StraightCrimp terminationMaleRated current: ‌4 AContacts: 2 + shieldingConductor cross-section: 0.08 ... 0.32 mm² Stranded

T1 SPE IP20 1x2xAWG22/7 PUR 1,0m
New
Cable assemblies

T1 SPE IP20 1x2xAWG22/7 PUR 1,0m

Article No.: 33 28 020 2002 010

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 1 m

T1 SPE IP20 1x2xAWG22/7 PUR 20m
New
Cable assemblies

T1 SPE IP20 1x2xAWG22/7 PUR 20m

Article No.: 33 28 020 2002 200

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 20 m

T1 SPE IP20 1x2xAWG26/7 PUR 0,5m
New
Cable assemblies

T1 SPE IP20 1x2xAWG26/7 PUR 0,5m

Article No.: 33 28 020 2001 005

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 0.5 m

T1 Ind.jack,T1-M12 stra.,12,5mm
New
PCB connector

T1 Ind.jack,T1-M12 stra.,12,5mm

Article No.: 21 03 339 2202

StraightReflow soldering termination (THR)Rated current: ‌4 AContacts: 2 + shielding

T1 SPE IP20 1x2xAWG26/7 PUR 0,3m
New
Cable assemblies

T1 SPE IP20 1x2xAWG26/7 PUR 0,3m

Article No.: 33 28 020 2001 003

Pre-assembled on both sidesCopper cable (round)Halogen-free, Oil resistant, Flame retardantCable length: 0.3 m

20 (of 190)

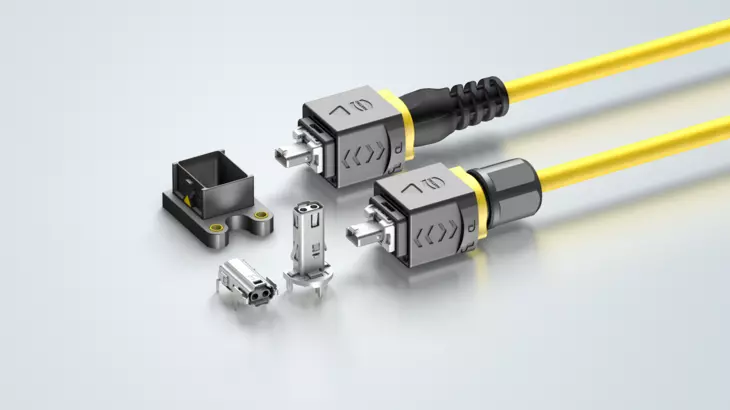

HARTING T1 Industrial for SPE

Device Connectivity Cable Connectors Cable Assemblies Data connectors Single Pair Ethernet.psd

Transmission of Ethernet via just one single pair of copper wires. SPE is the perfect technology to connect field devices to the Ethernet network. Single Pair Ethernet technology is fast, space-saving, cost-efficient and ready to implement. The equipping of simple sensors, cameras and more with Ethernet interfaces positions SPE as the driver of topics like Integrated Industry and IIoT.

Available as: CABLE CONNECTOR | CABLE ASSEMBLY | DEVICE SIDE

Various options

Cable Connectors Cable Assemblies Data connectors Single Pair Ethernet

Plug male connector V3

For IP 20 | AWG 28/7 ... AWG 22/7 Stranded
DSC08648_sRGB.psd

Circular connectors

IP65 / IP67 mated condition | AWG 28/7 ... AWG 22/7 Stranded
T1 Industrial miniPP

Mini PushPull

IP67 | 1x 2x AWG 22/7

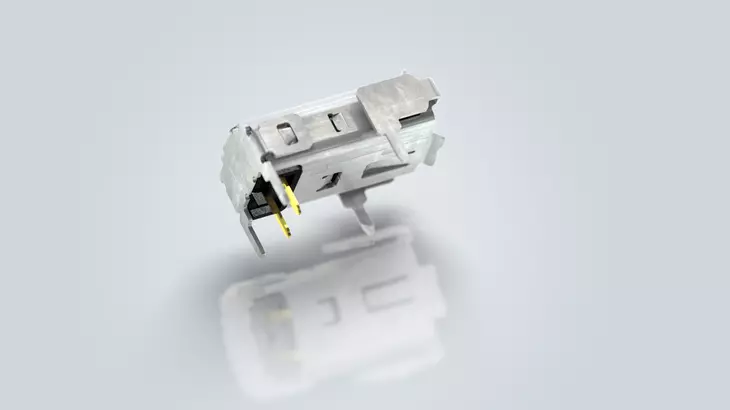

Jack AH IP20

PCB Jack

IP20 | straight and angled versions

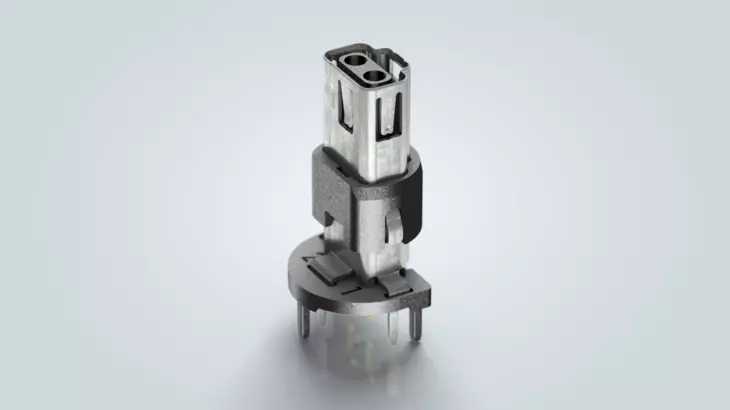

T1 Industrial M12 jack

M12 PCB Jack

IP65 / IP67 mated condition | straight and angled versions

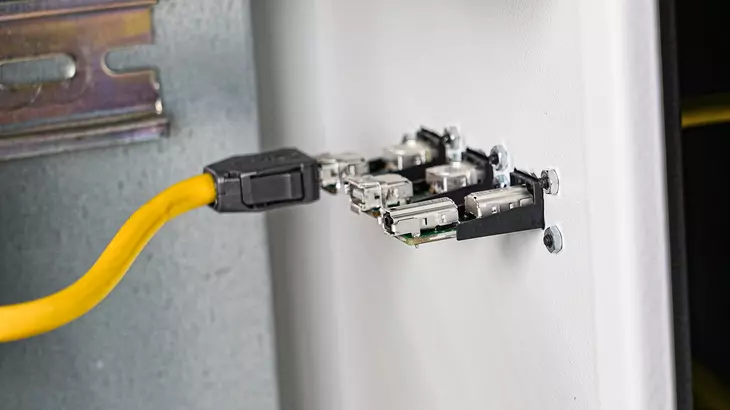

T1 Industrial Panel Feed troughs

Panel feed throughs

IP65 / IP67 for Mini PushPull
T1 Industrial cable assemblies

Cable assemblies

Pre-assembled on both sides in various length up to 40 meters.

Get to know Single Pair Ethernet

Single Pair Ethernet (SPE) transmits data via Ethernet at speeds of up to 1 Gbit/s with just one wire pair, making it the perfect solution for IIoT and barrier free communication between sensor and cloud. Get to know the SPE technology, use cases, standards, as well as the ecosystem on a dedicated Single Pair Ethernet webpage. Single Pair Ethernet

Single Pair Ethernet logo
Single Pair Ethernet smart factory

What is SPE?

Learn basics about SPE, its capabilities and why it is the ideal enabler for the IIoT.
More
Cable Connectors Cable Assemblies Data connectors Single Pair Ethernet

HARTING SPE products

Cable and PCB connectors plus cable assemblies: discover HARTING T1 Industrial.
More
Single Pair Ethernet explained easily

SPE standards

SPE standard gives users investment security. Get to know the important standards.
More
SPE Industrial Partner Network

SPE ecosystem

Discover how leading companies are cooperating and driving the SPE technology forward.
More
SPE more resources

More resources

More educational videos, articles and helpful links to discover Single Pair Ethernet.
More resources

SPE ebook

Single Pair Ethernet explained easily

Your quick start guide: Get to know Single Pair Ethernet in our free eBook and short videos.

Download

Knowledge

cable termination

Cable termination technology

Cable type, contact type, and others: what is the right criteria to select the proper termination technology?
Learn more

IP protection

The connector’s housing, sealing and locking mechanism protect the connection from external influences.
Learn more
Locking types

Locking types

The correct type of locking prevents accidental disconnection and is based on the factors of the application.
Learn more

Engineering data & services

CAD data, product data manager, distributors availability, free samples & more.

Engineering data icons

Discover the HARTING Engineering Data & Services to support your project as best as possible. For each product in our digital catalogue you will find further engineering data and services:

More

  • CAD data, data sheets and type sheets

  • Product selectors with multiple attributes

  • Individually data packages

  • Configuration and customization

  • Individual notes and deratings

  • Free sample service

HARTING Newsletter

Social Media

Country flagChina Mainland

© HARTING Technology Group | HARTING (Zhuhai) Manufacturing Co., Ltd. Room 201, No.19 Chuangxin Si Road, Zhuhai City Tel: 86 40 01761166 Shanghai branch Room 3501-3510 Grand Gateway 1, NO.1 Hong Qiao Road, Shanghai Tel：86 21 34189758

  • Imprint
  • Privacy Policy
  • Cookie Policy
  • Privacy Policy (Umeng+)
  • Terms of Use
  • Customer Information
  • 粤ICP备19078745
  • 粤公网安备 44049102496590
