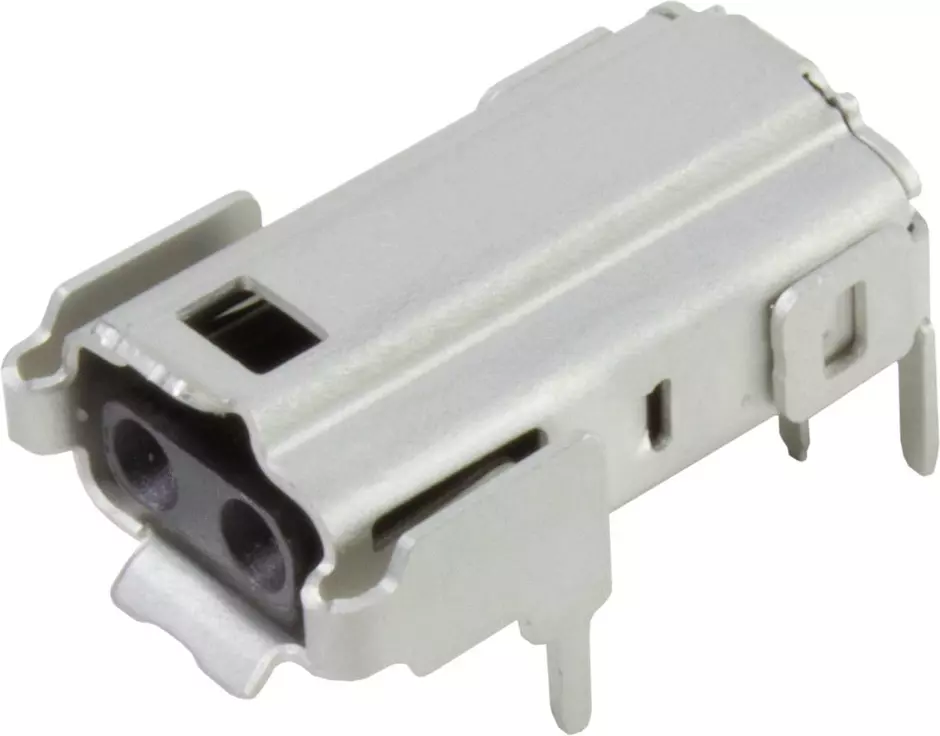

T1 Industrial jack AH IP20

Article No.: 09 45 281 2810 333

New

Image is for illustration purposes only. Please refer to product description.

New

PCB connector

Article No.: 09 45 281 2810 333

to see prices and availability.

to see prices and availability.

PCB connector

Angled, Short version

Reflow soldering termination (THR)

Rated current: ‌4 A

Contacts: 2 + shielding

Identification

Version

Termination method	Reflow soldering termination (THR)
Gender	Female
Shielding	Fully shielded, 360° shielding contact
Number of contacts	2
further contacts	+ shielding
Pack contents	Sample

Technical characteristics

Rated current	‌ 4 A
Rated voltage	‌ 60 V DC
Transmission characteristics	4 GHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Contact resistance	≤ 20 mΩ
Shielding resistance	≤ 100 mΩ
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 1,000
Degree of protection acc. to IEC 60529	IP20
Test voltage UDC	1 kV (contact-contact)
Test voltage UDC	2.25 kV (contact-ground)
Moisture Sensitivity Level (MSL)	1 acc. to ECA/IPC/JEDEC J-STD-020D
Process Sensitivity Level (PSL)	R0 acc. to ECA/IPC/JEDEC J-STD-020D

Material properties

RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	IEC 63171-6
	IEEE 802.3bu (remote power supply over PoDL = Power over Data Line)
	IEEE 802.3cg (10BASE-T1)
	IEEE 802.3bw (100BASE-T1)
	IEEE 802.3bp (1000BASE-T1)
	IEEE 802.3ch (2.5GBASE-T1 / 5GBASE-T1 / 10GBASE-T1)

Commercial data

Packaging size	1
Net weight	1 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140223509
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
