Space-saving connections for drives, frequency inverters and control cabinets

Machinery and robotics applications demand ever-increasing power transmission in ever-smaller spaces. Drives, frequency converters and control units must be reliably supplied with energy, even when installation space is extremely limited.

With its new Han® Size 4, HARTING offers space-saving, high-performance connections for machine engineering and robotics applications. The compact housings and inserts transmit currents of up to 70 A while occupying up to 40% less space than the next larger size.

Han® Size 4 fills a real gap in the market between Han® 3 and Han® 6. On one side, the smaller Han® 3A reaches its limit at 40 A, making it unsuitable for many machine applications where higher currents are required. On the other hand, the next-largest Han® 6B, for example, is simply too large for many installation environments, leaving engineers with no suitable standard solution.

The new Size 4 bridges this gap, providing interfaces that have a small footprint while simultaneously transmitting the high currents that modern machines require. With a supported current of up to 70 A, it meets the demands of drives, frequency converters and other power-intensive components without the risk of overloading the connector. The space saved can be used for the remaining infrastructure, such as cooling or ventilation systems, directly contributing to a more efficient and well-designed machine layout.

By reducing the required installation space by up to 50% compared to the next larger size, Han® Size 4 already creates room for additional infrastructure directly at the machine level. This advantage is complemented by efficiency gains in power transmission: the 40 A contacts, which fit into the Han-Eco® Size 4 housings, enable energy savings of around 50%.

This is primarily due to the low impedance of the silver-plated power contacts compared to conventional CEE plugs. These contacts generate significantly less heat during operation, reducing energy losses. Less energy is lost as heat leads to lower operating costs, a reduced thermal load on the overall system and a more sustainable machine design.

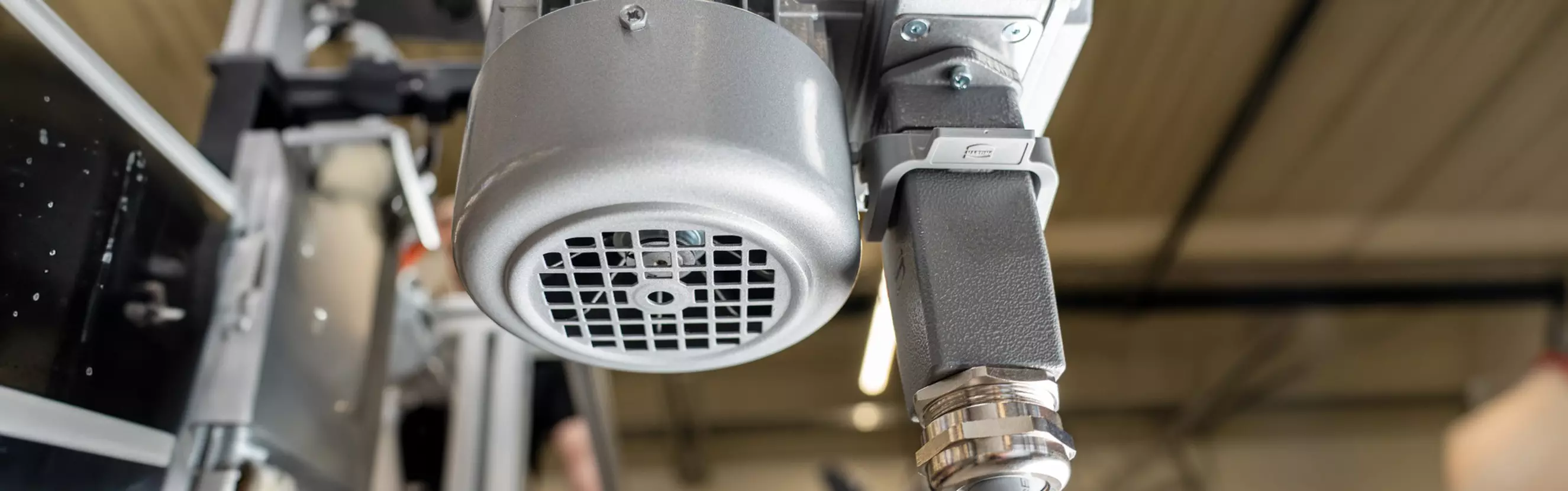

Han® Size 4 hoods and housings allow space-saving connections for drives, frequency converters and other equipment in harsh industrial environments. The robust design is built to withstand the demanding conditions found on the machine floor, ensuring long-term reliability even in challenging production environments.

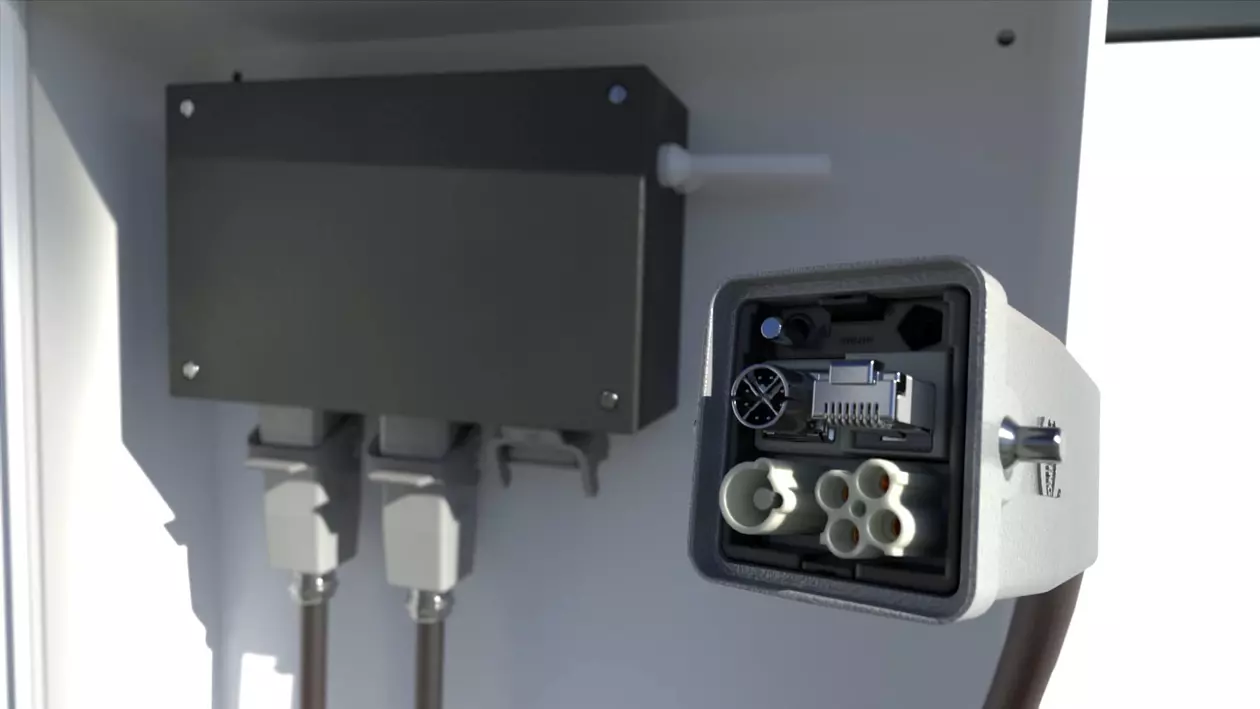

A wide range of inserts from more than 150 different Han-Modular® connectors, including PE conductors, can be integrated. Thanks to its modular design, which allows for combinations of power, signals or data, Han® Size 4 is a flexible, scalable and future-proof interface for the mechanical engineering of tomorrow.

HARTING offers Han® Size 4 in its well-known products, providing the right solution for every industrial environment.

Han® B Size 4

The trusted Han® robustness in the new compact form factor, built for demanding industrial environments.

Han® HPR Size 4

High-performance connectivity for the most challenging industrial applications.

Han-Eco® Size 4

Lightweight and cost-efficient, ideal for standard machinery applications where space and sustainability matter.
