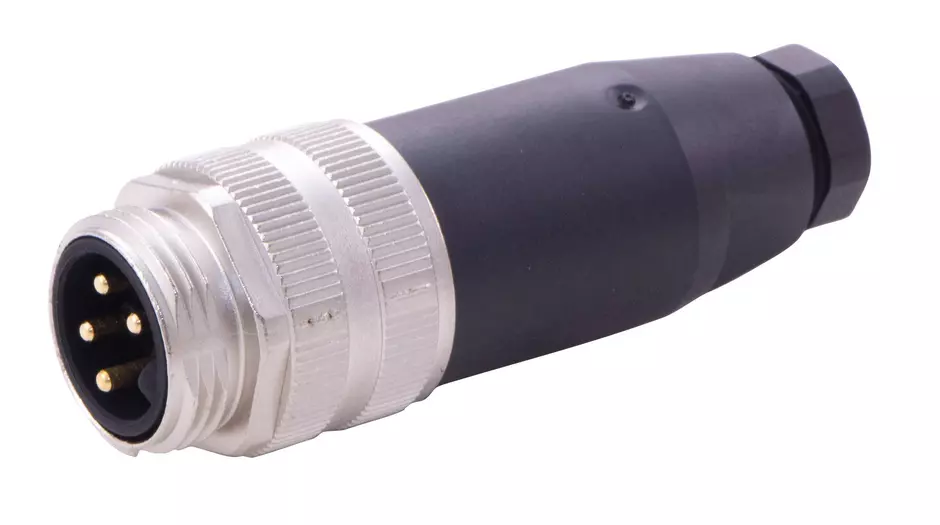

7/8" m 4p screw 6-8mm str

Article No.: 61 02 201 0211 00

New

Image is for illustration purposes only. Please refer to product description.

New

Cable connector

Article No.: 61 02 201 0211 00

to see prices and availability.

to see prices and availability.

Cable connector

Straight

Male

Polyamide (PA), Thermoplastic polyurethane (TPU)

Contacts: 4

Conductor cross-section: 1.5 mm²

Rated current: ‌9 A

Polybutylene terephthalate (PBT)

Screw locking

Identification

Version

Technical characteristics

Conductor cross-section	1.5 mm²
Rated current	‌ 9 A
Rated voltage	300 V
Rated impulse voltage	4 kV
Pollution degree	3
Overvoltage category	III (protection by low voltage)
Insulation resistance	>10¹⁰ Ω
Limiting temperature	-25 ... +85 °C
Cable diameter	6 ... 8 mm
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Polyamide (PA)
Material (insert)	Thermoplastic polyurethane (TPU)
Material (hood/housing)	Polybutylene terephthalate (PBT)
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
REACH SVHC substances	Imidazolidine-2-thione
ECHA SCIP number	dd830bf5-8415-40c6-9706-42c221258c0b
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Commercial data

Packaging size	1
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140224629
eCl@ss	27440116 Circular connector (for field assembly)
ETIM	EC002635
UNSPSC 24.0	39121413
