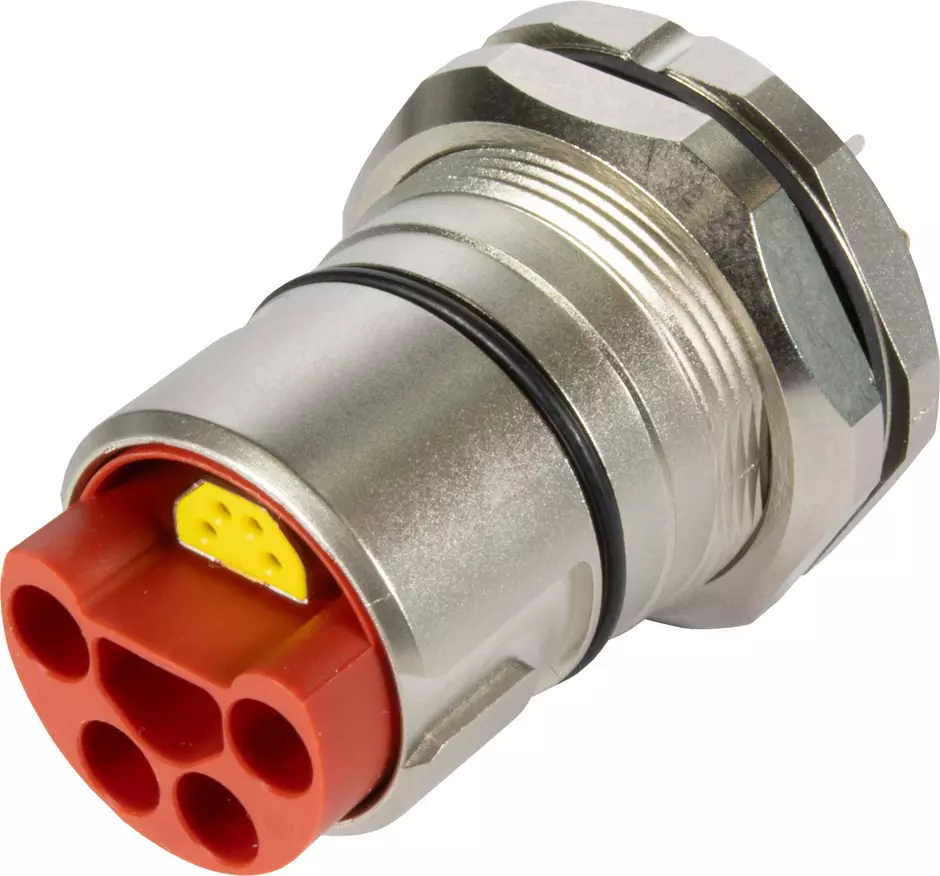

B23 Print receptacle male PCB

Article No.: 21 94 339 1900

New

Image is for illustration purposes only. Please refer to product description.

New

PCB connector

Article No.: 21 94 339 1900

to see prices and availability.

to see prices and availability.

PCB connector

Application B according to IEC 61076-2-118

Male, Female

Wave soldering termination, Solder termination

Polyamide (PA)

Contacts: 9

Copper alloy Au over Ni

Zinc alloy

Bayonet locking

Degree of protection: IP65 / IP67 locked condition

Identification

Category	Connectors
Series	Circular connectors B23
Element	PCB connector
Specification	Application B according to IEC 61076-2-118
Features	Power: Male contacts with solder termination
Features	Data: Female contacts with conductors

Version

Termination method	Wave soldering termination
Termination method	Solder termination
Gender	Male
Gender	Female
Size	B23
Shielding	Shielded
Number of contacts	9
Number of data contacts	4
Number of power contacts	4
Number of special contacts	1x PE contact
Specification of special contacts	PE contact
Locking type	Bayonet locking
Details	Connection / disconnection under load and / or voltage not permitted.
	Connector shall not be live when disconnected.
	Installation by skilled persons only.

Technical characteristics

Pollution degree	2
Rated current (data)	4 A
Rated voltage (data)	50 V
Rated impulse voltage (data)	0.8 kV
Rated current (power)	26 A
Rated voltage (power)	50 V
Rated impulse voltage (power)	1.5 kV
Rated current acc. to UL (Power)	26 A
Rated voltage acc. to UL (Power)	50 V
Rated current acc. to CSA (Power)	26 A
Rated voltage acc. to CSA (Power)	50 V
Limiting temperature	-30 ... +85 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67 locked condition

Material properties

Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni
Material (hood/housing)	Zinc alloy
Surface (hood/housing)	Nickel plated
Material (seal)	NBR
Colour (seal)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	IEC 61076-2-118
UL / CSA	UL 2237 / 2238 in preparation

Commercial data

Packaging size	10
Net weight	65.53 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140494626
eCl@ss	27440110 Circular connector, mounting (PCB)
UNSPSC 24.0	39121413
