D-SUB M 11W1 MA CRIMP TH

Article No.: 09 69 212 0111

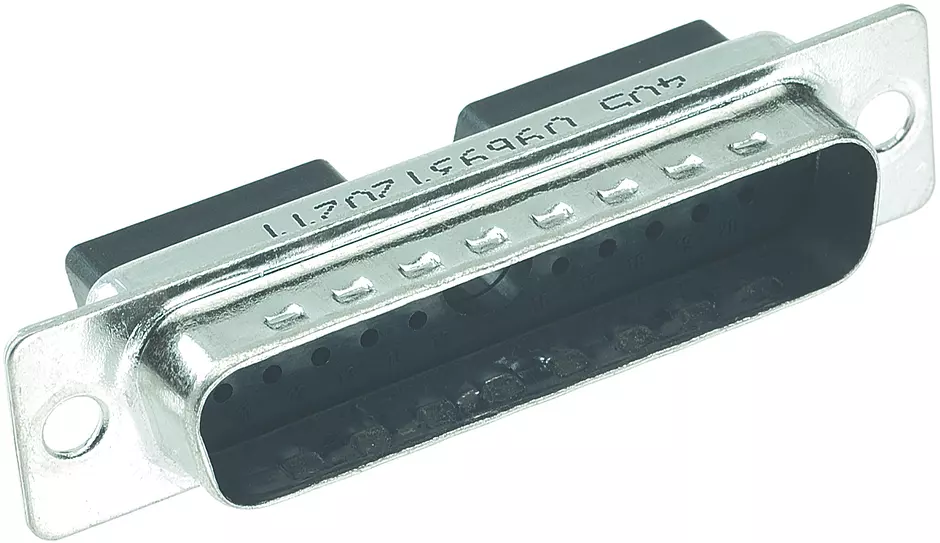

Image is for illustration purposes only. Please refer to product description.

Connector

Article No.: 09 69 212 0111

to see prices and availability.

to see prices and availability.

Connector

Crimp termination

Rated current: ‌5 A

Male

Size: D-Sub 2

Thermoplastic resin, glass-fibre filled (Polyester), Shell: steel, tin plated

Black

Contacts: 11

Identification

Version

Termination method	Crimp termination
Locking type	Fixing flange with feed through hole Ø 3.1 mm
Gender	Male
Size	D-Sub 2
Number of contacts	11
Number of special contacts	1x
Number of signal contacts	10
Details	Please order contacts separately.

Technical characteristics

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Thermoplastic resin, glass-fibre filled (Polyester)
Material (insert)	Shell: steel, tin plated
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E102079

Commercial data

European customs tariff number	85366990
Packaging size	100
Net weight	5.59 g
Country of origin	Germany
GTIN	5713140098817
eCl@ss	27440214 D-Sub coupler
ETIM	EC001136
UNSPSC 24.0	39121469
