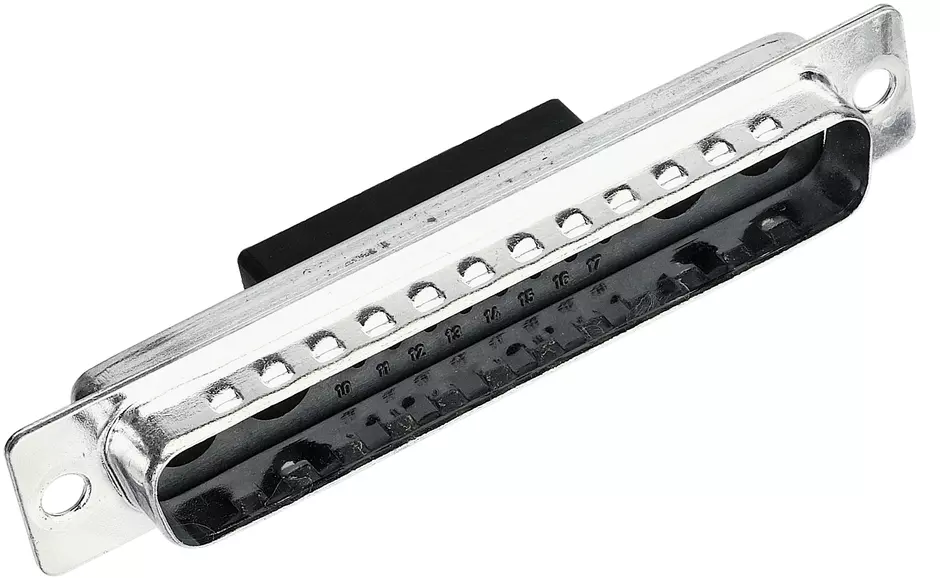

D-SUB M 21W4 MA CRIMP TH

Article No.: 09 69 412 0214

Image is for illustration purposes only. Please refer to product description.

Connector

Article No.: 09 69 412 0214

to see prices and availability.

to see prices and availability.

Connector

Crimp termination

Rated current: ‌5 A

Male

Size: D-Sub 4

Thermoplastic resin, glass-fibre filled (Polyester), Shell: steel, tin plated

Black

Contacts: 21

Identification

Version

Termination method	Crimp termination
Gender	Male
Size	D-Sub 4
Number of contacts	21
Number of signal contacts	17
Number of special contacts	4x
Locking type	Fixing flange with feed through hole Ø 3.1 mm
Details	Please order contacts separately.

Technical characteristics

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled (Polyester)
Material (insert)	Shell: steel, tin plated
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E102079

Commercial data

Packaging size	50
Net weight	10 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140102279
eCl@ss	27440214 D-Sub coupler
ETIM	EC001136
UNSPSC 24.0	39121469
