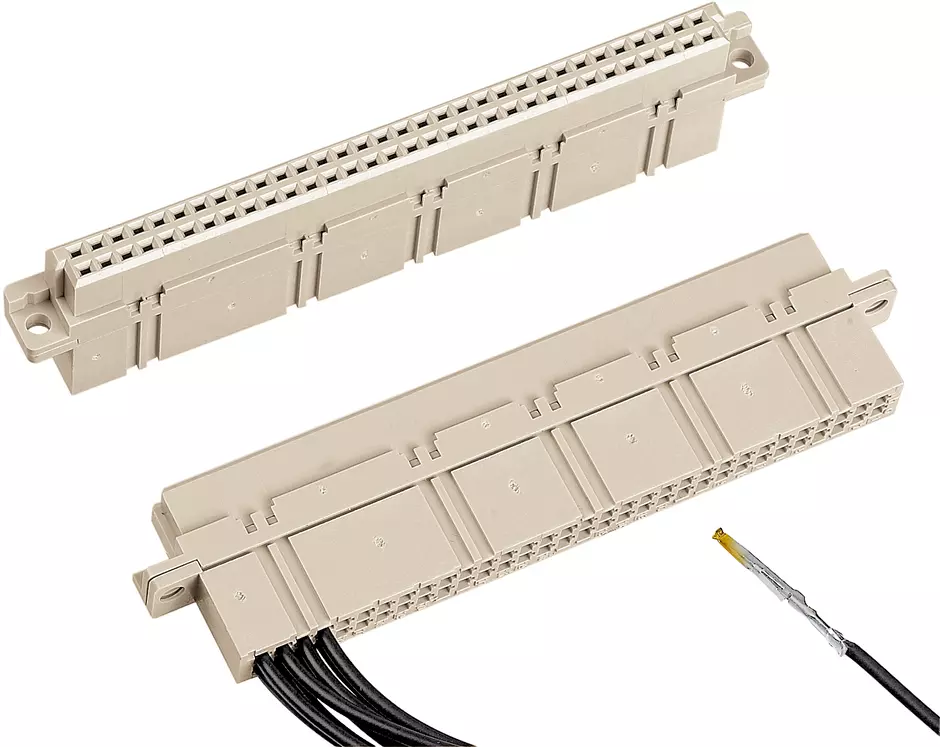

DIN-Signal B064FC-B

Article No.: 09 02 064 3214

Image is for illustration purposes only. Please refer to product description.

Female connector

Article No.: 09 02 064 3214

to see prices and availability.

to see prices and availability.

Female connector

Crimp termination

Contacts: 64

Coding: Coding with loss of contacts

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Connection type	PCB to cable
Number of contacts	64
Coding	Coding with loss of contacts
PCB fixing	With fixing flange
Details	Please order crimp contacts separately.

Technical characteristics

Hot plugging	No
Contact rows	2
Contact spacing (termination side)	2.54 mm
Contact spacing (mating side)	2.54 mm
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	1.2 mm
Creepage distance	1.2 mm
Insulation resistance	>10¹² Ω
Contact resistance	20 mΩ
Limiting temperature	[-55] ... [+125 °C]
Insertion force	60 N
Withdrawal force	40 N
Test voltage Ur.m.s.	1 kV (contact-contact)
Test voltage Ur.m.s.	1.55 kV (contact-ground)
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	200
Net weight	10 g
Country of origin	Germany
GTIN	5713140003217
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
