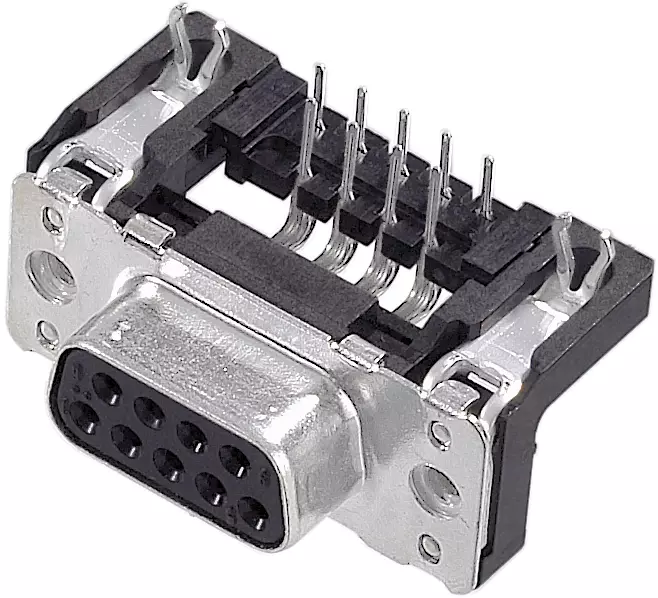

DSUB SV FE SSDP ANG73-254 09P PL2 GC4-40

Article No.: 09 66 152 6612

Image is for illustration purposes only. Please refer to product description.

Connector

Article No.: 09 66 152 6612

to see prices and availability.

to see prices and availability.

Connector

Wave soldering termination

Rated current: ‌6.5 A

Female

Size: D-Sub 1

Thermoplastic resin, glass-fibre filled (PBTP), Shell: Plated steel

Black

Contacts: 9 With grounding pin

Copper alloy

Noble metal over Ni

Identification

Version

Termination method	Wave soldering termination
Gender	Female
Size	D-Sub 1
Connection type	Motherboard to daughtercard
Number of contacts	9
further contacts	With grounding pin
Termination length	2.9 mm
PCB fixing	With board locks
Locking type	Fixing flange with thread 4-40 UNC

Technical characteristics

Distance between rows	2.54 mm
Contact spacing (termination side)	2.74 mm
Rated current	‌ 6.5 A
Clearance distance	≥ 1 mm
Creepage distance	≥ 1 mm
Insulation resistance	>10¹⁰ Ω
Contact resistance	≤ 10 mΩ
Tightening torque	≤0.6 Nm Female screw lock
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 30 N
Withdrawal force	≥ 3.3 N
Withdrawal force	≤ 20 N
Performance level	2
Performance level	acc. to CECC 75301-802
Mating cycles	≥ 250
Test voltage Ur.m.s.	1 kV
Isolation group	IIIa (175 ≤ CTI < 400)
PCB thickness	≥1.6 mm
Installation height	‌ 7.3 mm
Hot plugging	No

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled (PBTP)
Material (insert)	Shell: Plated steel
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

Specifications	DIN 41652
UL / CSA	UL 1977 ECBT2.E102079

Commercial data

Packaging size	100
Net weight	8.1 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140080737
eCl@ss	27440214 D-Sub coupler
ETIM	EC001136
UNSPSC 24.0	39121469
