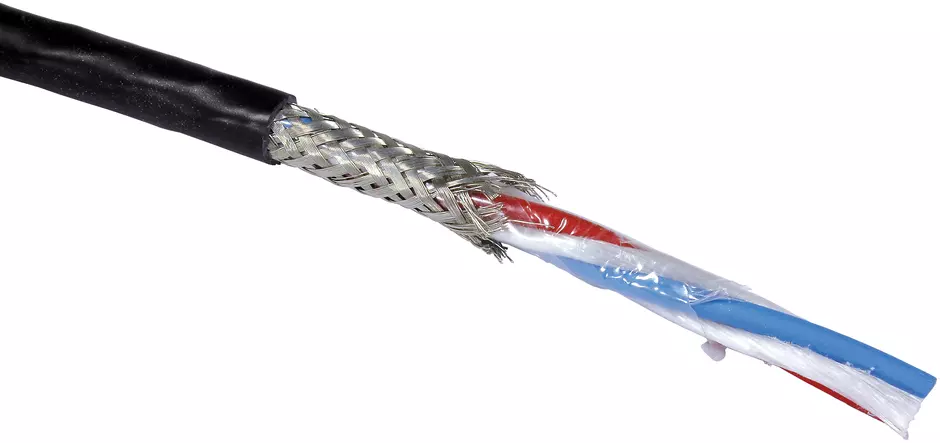

Data Bus Kabel 2x0,5mm², 120 Ohm UL 500m

Article No.: 09 45 600 0270

Image is for illustration purposes only. Please refer to product description.

Copper cable (round)

Article No.: 09 45 600 0270

to see prices and availability.

to see prices and availability.

Copper cable (round)

MVB, for railway applications

2x 0.5 mm²

Elastomer

Cable length: 500 m

Identification

Version

Technical characteristics

Impedance	120 Ω
Limiting temperature	-40 ... +90 °C unmoved
Minimum bending radius	6x Cable diameter (singular bending)
Conductor resistance @ 20 °C	≤120 Ω/km

Material properties

Material (cable)	Elastomer
Colour (cable)	Black
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	50,000 g
Net weight	‌ 85 g/m
Country of origin	Switzerland
European customs tariff number	85444290
GTIN	5713140273184
eCl@ss	27061801 Data and communication cable (copper)
ETIM	EC003249
UNSPSC 24.0	26121609
