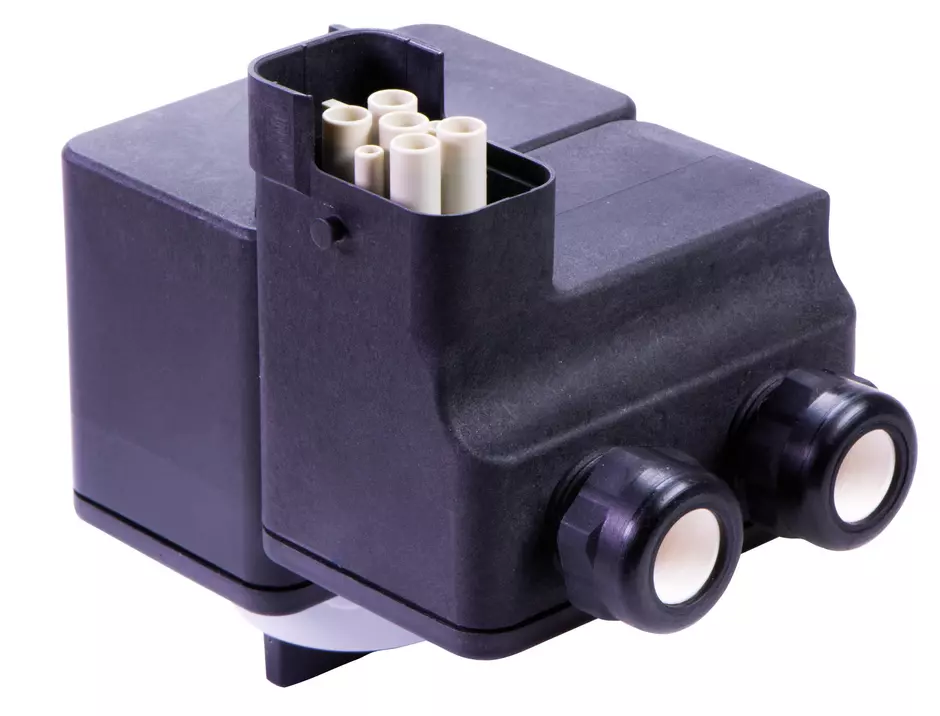

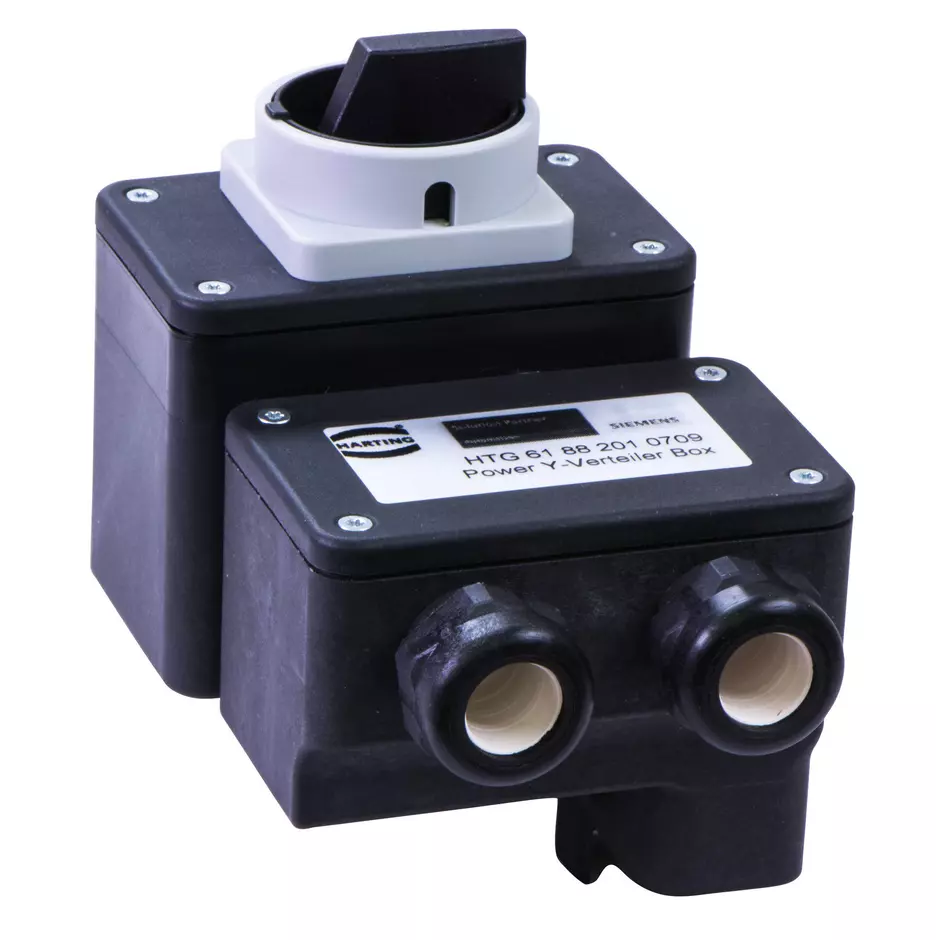

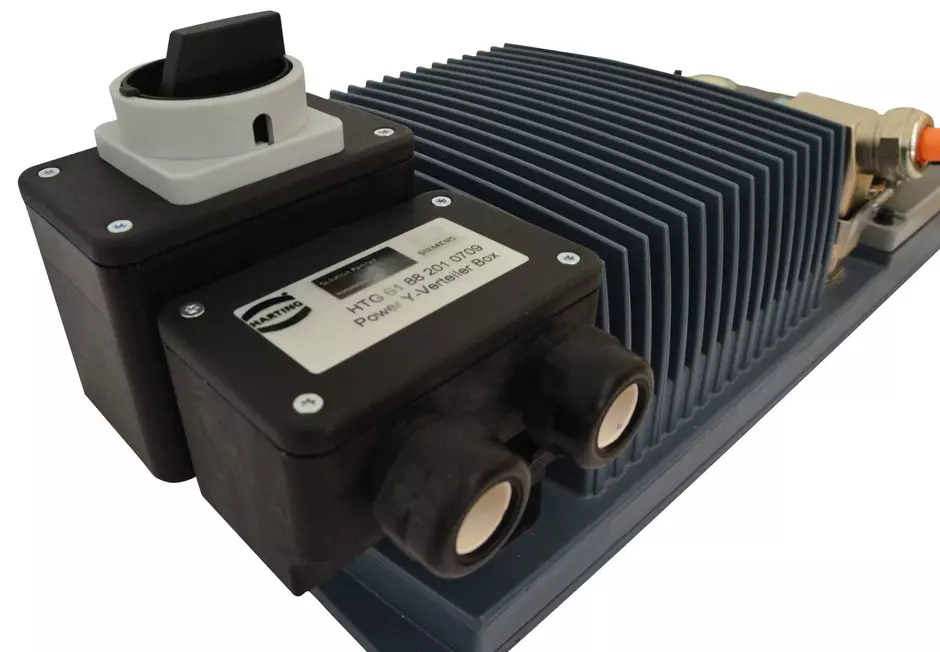

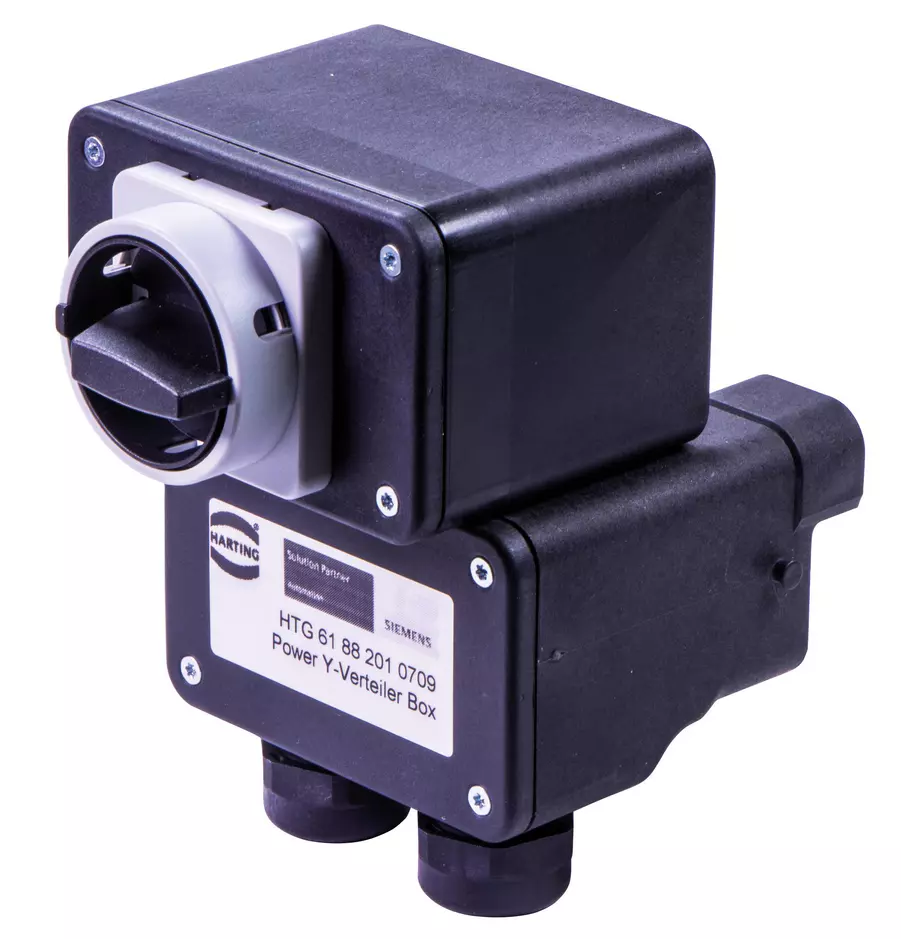

HAN Q4/2 Y-Junctionbox w. Switch 7.5kW

Article No.: 61 88 201 0709 00

Image is for illustration purposes only. Please refer to product description.

Y-distributor

Article No.: 61 88 201 0709 00

to see prices and availability.

to see prices and availability.

Y-distributor

With maintenance switch, for 7.5 kW motor

Contacts: 3

Conductor cross-section: 1.5 ... 4 mm² Spring clamp termination

Material (hood/housing): Polyamide (PA)

RAL 9005 (jet black)

Degree of protection: IP65

Identification

Version

Technical characteristics

Conductor cross-section (mm²)	1.5 ... 4 mm² Spring clamp termination
Conductor cross-section (AWG)	AWG 20 ... AWG 12 Spring clamp termination
Rated current	32 A
Rated current	20 A
Rated voltage	500 V
Rated impulse voltage	4 kV
Pollution degree	3
Limiting temperature	[-25] ... [+40 °C]
Degree of protection acc. to IEC 60529	IP65
Test voltage Ur.m.s.	6 kV

Material properties

ECHA SCIP number	be45dcda-0f90-459a-a8bc-78fb7986a295
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	Elastomer
Colour (seal)	White
Material (cable glands)	Thermoplastic
Colour (cable gland)	Black
Material flammability class acc. to UL 94	V-0

Commercial data

European customs tariff number	85444290
Packaging size	1
Net weight	400 g
Country of origin	Germany
GTIN	5713140274235
eCl@ss	27142409 Small distribution board
ETIM	EC000214
UNSPSC 24.0	39121303
