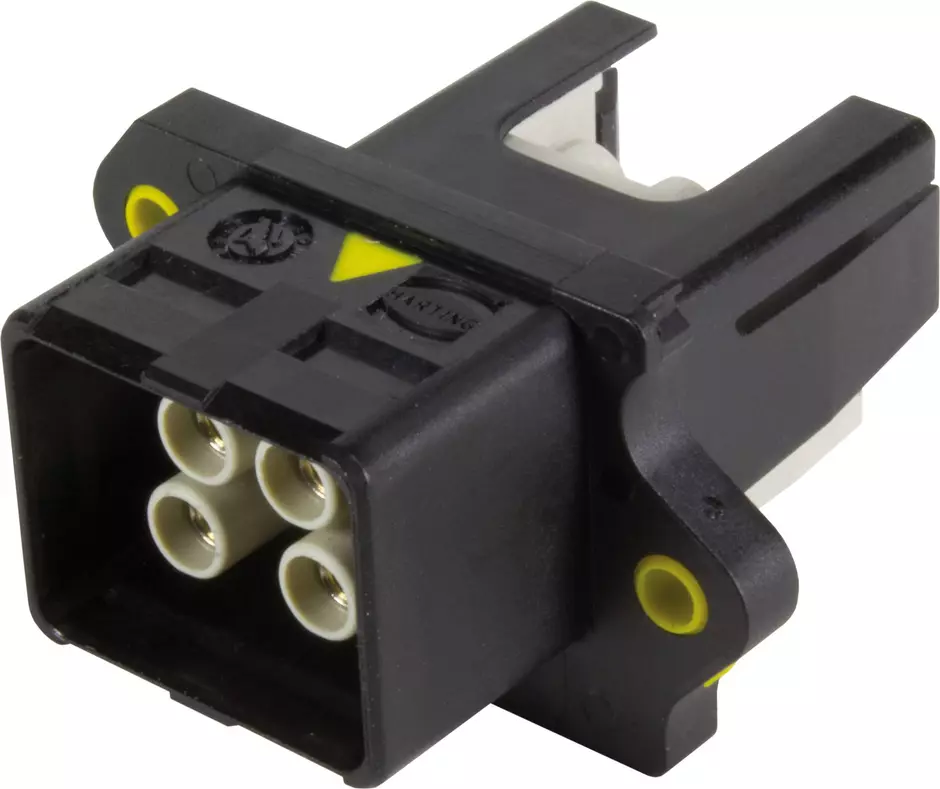

HARTING PushPull V4 WDF 48V/12A 4p Crimp

Article No.: 09 46 245 4420

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 46 245 4420

to see prices and availability.

to see prices and availability.

Connectors

Panel feed through set

Crimp termination

Rated current: ‌12 A

Contacts: 4

Compact

PushPull

Material: Thermoplastic

Degree of protection: IP65, IP67

Identification

Version

Termination method	Crimp termination
Locking type	PushPull
Shielding	Unshielded
Number of contacts	4
Pack contents	with 4 turned female contacts, insulation body, hood and integrated seal

Technical characteristics

Conductor cross-section (mm²)	1.5 mm²
Conductor cross-section (AWG)	AWG 16 ... AWG 14
Wire outer diameter	2.9 mm
Rated current	12 A
Rated voltage	48 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Limiting temperature	[-40] ... [+70 °C]
Stripping length	5 mm Cores
Stripping length	30 mm cable jacket
Mating cycles	750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Vibration resistance	10-500 Hz, 5 g, 0.35 mm, 2h/axis
Vibration resistance	5.72 m/s² acc. to IEC 61373 Category 1 Class B
Shock resistance	25 g / 11 ms, 3 shocks / axis and direction
Shock resistance	5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	9.7 g
Country of origin	Romania
GTIN	5713140223684
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
