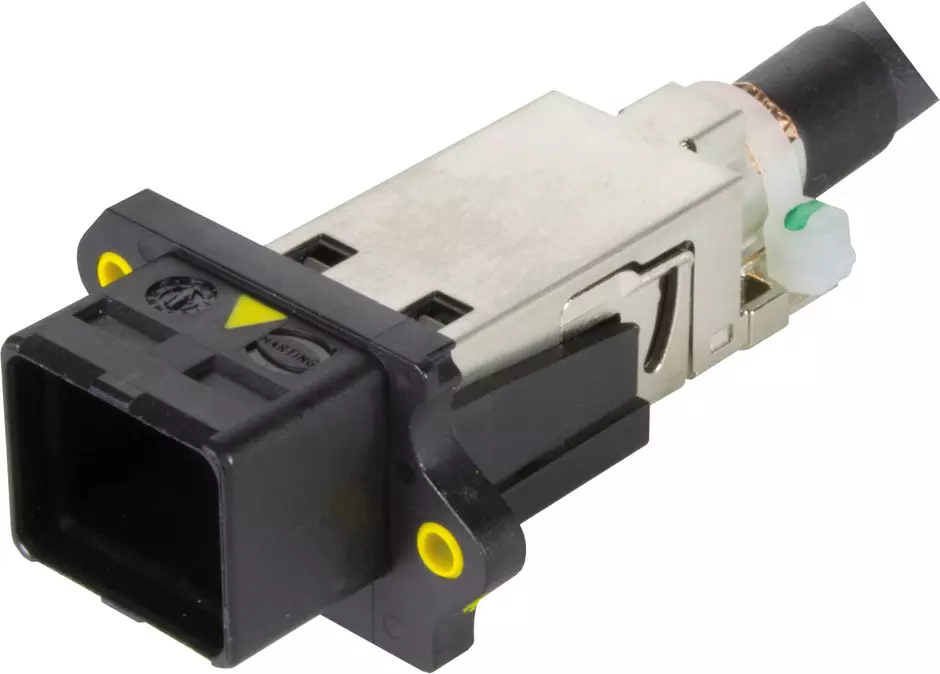

HPP 20p. Device Side Cable Assembly 0,1m

Article No.: 33 22 143 0100 002

Image is for illustration purposes only. Please refer to product description.

Cable assemblies

Article No.: 33 22 143 0100 002

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on one side

Copper cable (round)

Cable length: 0.1 m

Identification

Category	System cabling
Series	HARTING PushPull (V4)
Element	Cable assemblies
Specification	Pre-assembled on one side
Connector 1	HARTING PushPull (V4) Thermoplastic
Connector 1	Compact
Type of cable	Copper cable (round)

Version

Technical characteristics

Contact spacing (termination side)	1.9 mm
Contact spacing (termination side)	2 mm
Contact spacing (mating side)	1.9 mm
Contact spacing (mating side)	2 mm
Rated current	‌ 2 A
Rated voltage	50 V
Clearance distance	≥ 1.2 mm
Creepage distance	≥ 1.9 mm
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-40 ... +80 °C
Insertion force	‌ 50 N
Withdrawal force	‌ 50 N
Mating cycles	≥ 100
Test voltage Ur.m.s.	2 kV (contact-contact)
Test voltage Ur.m.s.	2 kV (contact-ground)
Isolation group	I (600 ≤ CTI)
Vibration resistance	10-500 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
Shock resistance	50 g / 11 ms, 3 shocks / axis and direction

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated Termination side
Surface (contacts)	Silver plated Mating side
Material (cable)	PUR (polyurethane)
Colour (cable)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Commercial data

Packaging size	1
Net weight	22.7 g
Country of origin	China
European customs tariff number	85444290
GTIN	5713140150416
eCl@ss	27060390 Ready-made data cable (unspecified)
ETIM	EC002599
UNSPSC 24.0	26121600
