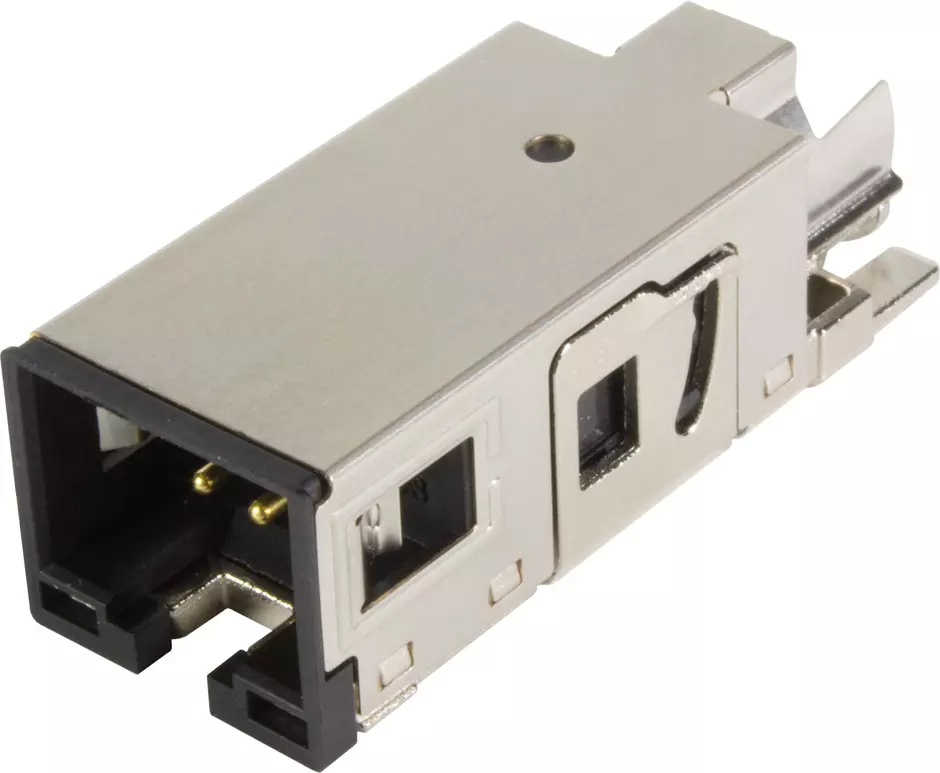

HPP V4 / V14 Signal PFT insert 10-pole

Article No.: 09 45 545 9010

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 545 9010

to see prices and availability.

to see prices and availability.

Connectors

Inserts

Crimp termination

Rated current: ‌5 A

Contacts: 10

Conductor cross-section: 0.13 ... 0.82 mm²

Copper alloy

Noble metal over Ni Mating side, Noble metal over Ni Termination side

Identification

Version

Termination method	Crimp termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	10
Pack contents	incl. male insert

Technical characteristics

Conductor cross-section	0.13 ... 0.82 mm²
Conductor cross-section [AWG]	AWG 26 ... AWG 18
Wire outer diameter	≤ 2.1 mm
Contact spacing (termination side)	2.4 mm
Contact spacing (termination side)	3 mm
Contact spacing (mating side)	2.4 mm
Contact spacing (mating side)	3 mm
Rated current	‌ 5 A
Rated voltage	50 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Clearance distance	≥ 1.4 mm
Creepage distance	≥ 1.4 mm
Insulation resistance	>10⁹ Ω
Contact resistance	≤ 10 mΩ
Limiting temperature	-40 ... +85 °C
Insertion force	‌ 50 N
Withdrawal force	‌ 50 N
Mating cycles	≥ 500
Test voltage Ur.m.s.	1.5 kV (contact-contact)
Test voltage Ur.m.s.	1.5 kV (contact-ground)
Isolation group	I (600 ≤ CTI)

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Noble metal over Ni Termination side
Material flammability class acc. to UL 94	HB
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	17 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140061453
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
