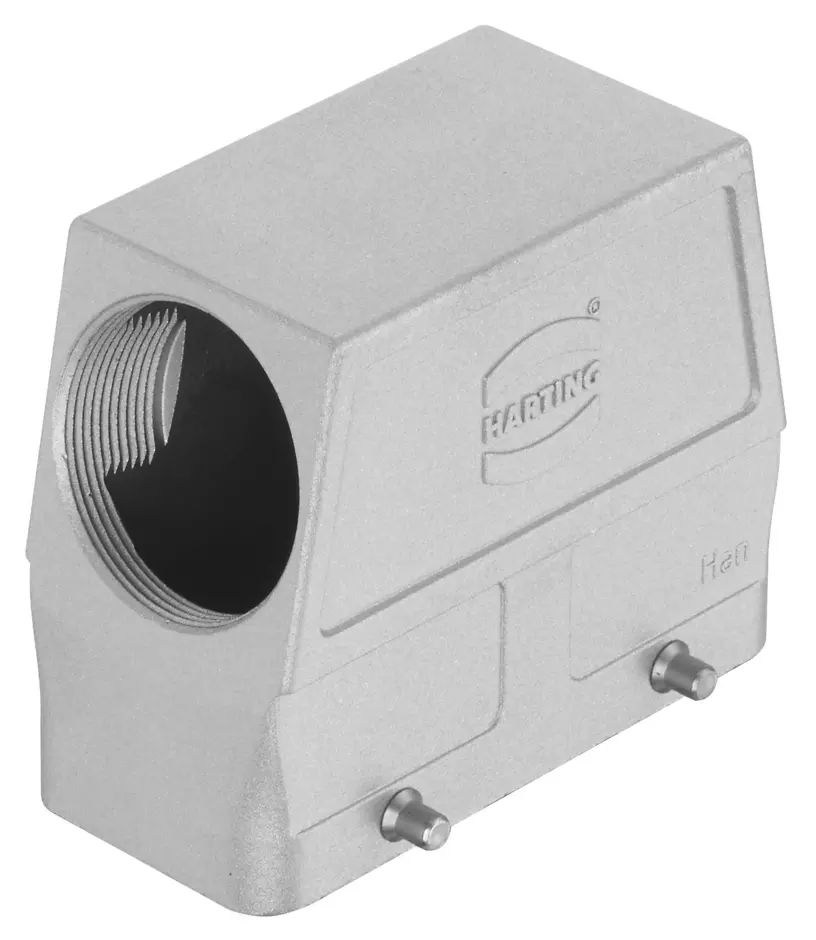

Han 16EMC/B-HSE-M40 (HT)

Article No.: 19 62 816 0528

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Hood

Article No.: 19 62 816 0528

to see prices and availability.

to see prices and availability.

Hood

Size: 16 B

High construction

Double locking lever

Side entry

1x M40

Material (hood/housing): Aluminium die-cast

Uncoated

Unpainted

Identification

Version

Locking type	Double locking lever
Size	16 B
Version	Side entry
Number of cable entries	1
Cable entry	1x M40
Field of application	Hoods/Housings for higher EMC requirements

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Limiting temperature	[-40] ... [+200 °C] With Han® High Temp components
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	500
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP66
Type rating acc. to UL 50 / UL 50E	4
Type rating acc. to UL 50 / UL 50E	12

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Uncoated
Colour (hood/housing)	Unpainted

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	199.8 g
Country of origin	Germany
GTIN	5713140132948
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
