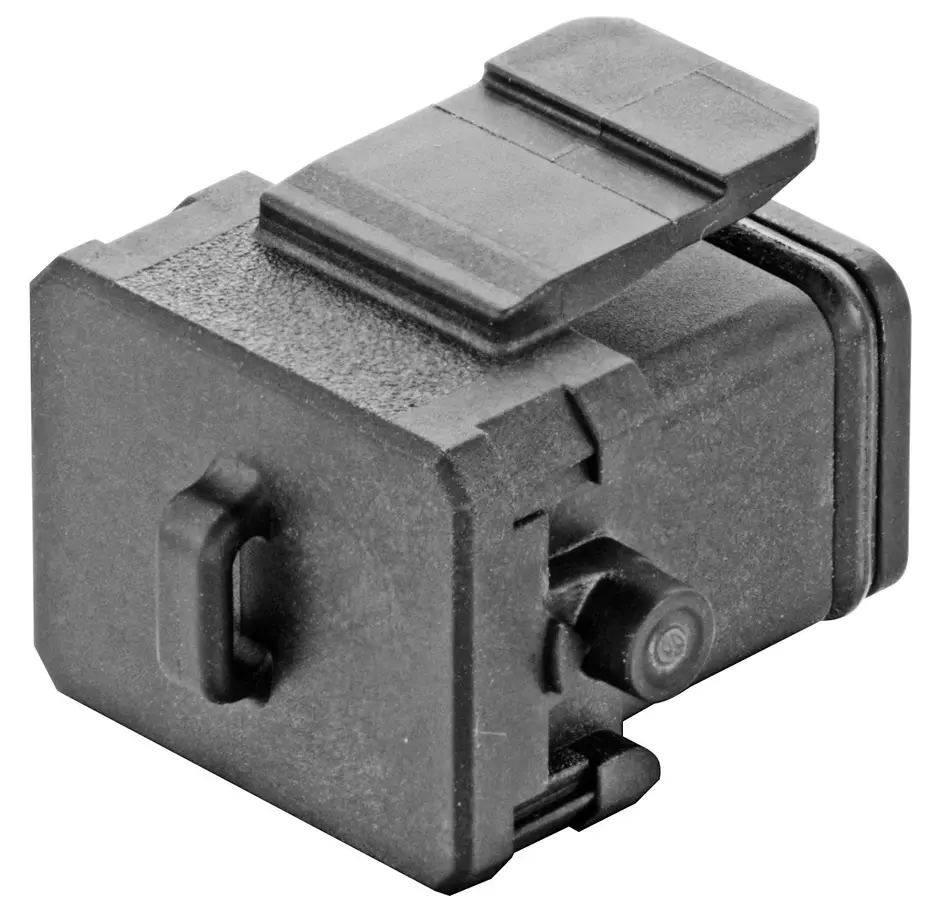

Han 1A-CP-Lever/Latch-male insert-V1

Article No.: 09 10 000 5401

New

Image is for illustration purposes only. Please refer to product description.

New

Protection cover

Article No.: 09 10 000 5401

to see prices and availability.

to see prices and availability.

Protection cover

for male inserts, 09 10 003 320X, 09 10 003 300X, 09 10 005 300X

Material (hood/housing): Polyamide (PA)

RAL 9005 (jet black)

Degree of protection: IP65

Identification

Category	Accessories
Series	Han® 1A
Type of accessory	Protection cover
Description of the accessory	for male inserts
	09 10 003 320X
	09 10 003 300X
	09 10 005 300X

Technical characteristics

Limiting temperature	[-30] ... [+90 °C]
Degree of protection acc. to IEC 60529	IP65

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 9005 (jet black)
Material flammability class acc. to UL 94	V-0

Commercial data

European customs tariff number	85389099
Packaging size	10
Country of origin	Romania
GTIN	5713140191822
eCl@ss	27440208 Cap for industrial connectors
ETIM	EC002314
UNSPSC 24.0	39121467
