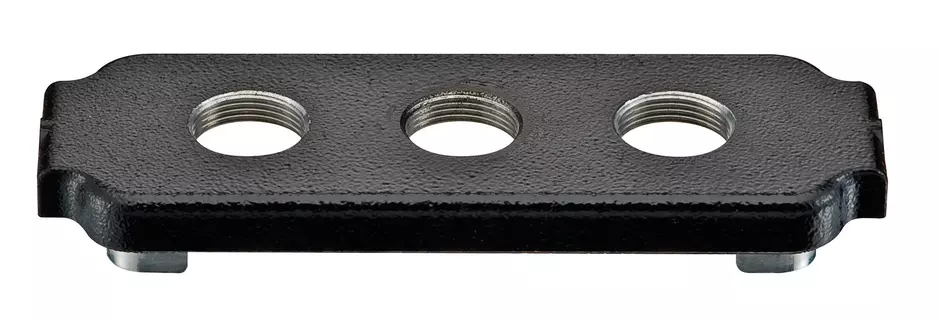

Han 24 HPR EasyCon Cover 3XM25

Article No.: 19 40 024 9901

Image is for illustration purposes only. Please refer to product description.

Mounting cover

Article No.: 19 40 024 9901

to see prices and availability.

to see prices and availability.

Mounting cover

for surface mounted housings, for hoods

Size: 24 B

Screw locking

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Material (seal): NBR

Degree of protection: IP65, IP68, IP69 / IPX9K acc. to ISO 20653

Identification

Category	Hoods / Housings
Series of hoods/housings	Han^® HPR EasyCon
Type of hood/housing	Mounting cover
Description of hood/housing	for surface mounted housings
Description of hood/housing	for hoods

Version

Size	24 B
Number of cable entries	3
Cable entry	3x M25
Locking type	Screw locking
Field of application	Hoods/housings for harsh outdoor environments

Technical characteristics

Tightening torque	‌6 Nm Mounting cover
	‌6 Nm Distance bolt
	‌6 Nm Fixing screws
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	258 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140130357
eCl@ss	27440208 Cap for industrial connectors
ETIM	EC002314
UNSPSC 24.0	39121467
