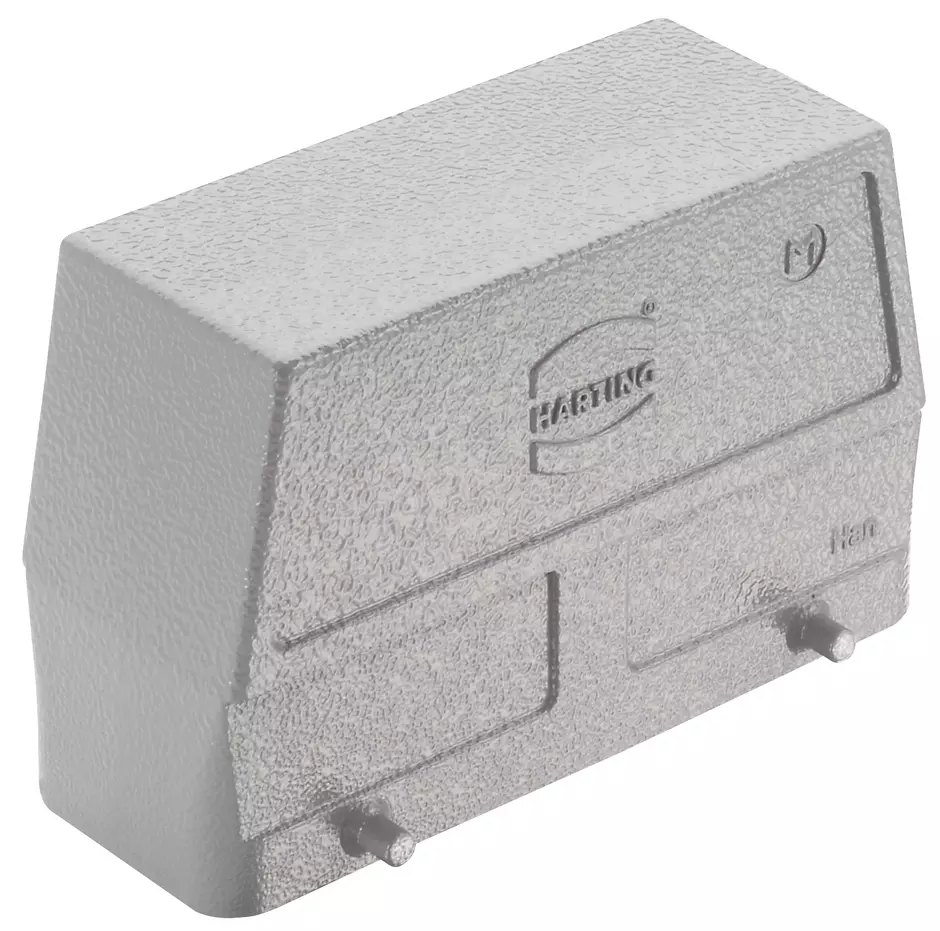

Han 24B-H-PG

Article No.: 09 30 024 0001 51

Customizable

Image is for illustration purposes only. Please refer to product description.

Customizable

Hood

Article No.: 09 30 024 0001 51

to see prices and availability.

to see prices and availability.

Hood

Customised solutions

Size: 24 B

High construction

Double locking lever

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 7037 (dust grey)

Identification

Version

Locking type	Double locking lever
Size	24 B
Field of application	Standard hoods/housings for industrial connectors

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Specifications and approvals

Approvals	CE
Approvals	DNV GL

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	246.8 g
Country of origin	Germany
eCl@ss	27440202 Shell for industrial connectors
