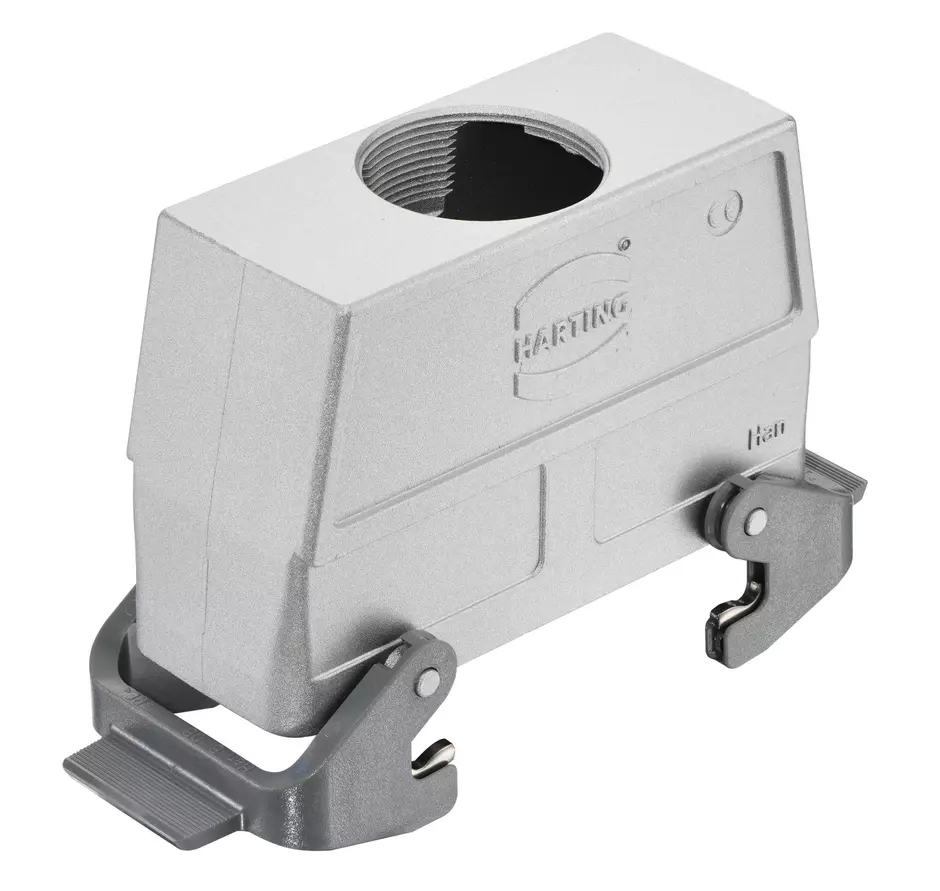

Han 24EMC/B-HTE-M40-DL

Article No.: 19 62 824 0438

New

Image is for illustration purposes only. Please refer to product description.

New

Hood

Article No.: 19 62 824 0438

to see prices and availability.

to see prices and availability.

Hood

Size: 24 B

High construction

Double locking lever (on the hood)

Polycarbonate (PC), Stainless steel

Top entry

1x M40

Material (hood/housing): Aluminium die-cast

Uncoated

Unpainted

Identification

Version

Size	24 B
Version	Top entry
Number of cable entries	1
Cable entry	1x M40
Locking type	Double locking lever (on the hood)
Han-Easy Lock®	Yes
Field of application	Hoods/Housings for higher EMC requirements

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
Type rating acc. to UL 50 / UL 50E	4
Type rating acc. to UL 50 / UL 50E	12

Material properties

Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Uncoated
Colour (hood/housing)	Unpainted
Material (locking)	Polycarbonate (PC)
Material (locking)	Stainless steel
Colour (locking)	RAL 7037 (dust grey)
Material flammability class acc. to UL 94 (locking levers)	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate

Specifications and approvals

Commercial data

Packaging size	1
Net weight	279 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140828926
eCl@ss	27440202 Shell for industrial connectors
UNSPSC 24.0	39121466
