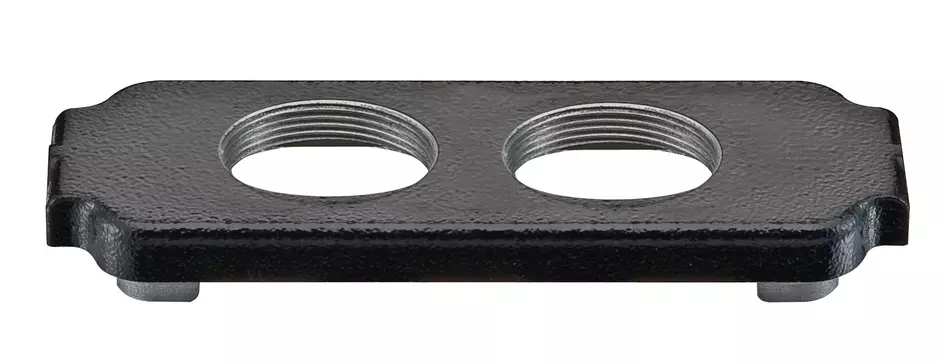

Han 24HPR EasyCon Cover 2xM40

Article No.: 19 40 024 9912

Image is for illustration purposes only. Please refer to product description.

Mounting cover

Article No.: 19 40 024 9912

to see prices and availability.

to see prices and availability.

Mounting cover

for surface mounted housings, for hoods

Size: 24 B

Screw locking

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Material (seal): NBR

Degree of protection: IP65, IP68, IP69 / IPX9K acc. to ISO 20653

Identification

Category	Hoods / Housings
Series of hoods/housings	Han^® HPR EasyCon
Type of hood/housing	Mounting cover
Description of hood/housing	for surface mounted housings
Description of hood/housing	for hoods

Version

Locking type	Screw locking
Size	24 B
Number of cable entries	2
Cable entry	2x M40
Field of application	Hoods/housings for harsh outdoor environments
Han-Easy Lock®	No

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque	‌6 Nm Mounting cover
	‌6 Nm Distance bolt
	‌6 Nm Fixing screws
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	234 g
Country of origin	Germany
GTIN	5713140175389
eCl@ss	27440208 Cap for industrial connectors
ETIM	EC002314
UNSPSC 24.0	39121467
