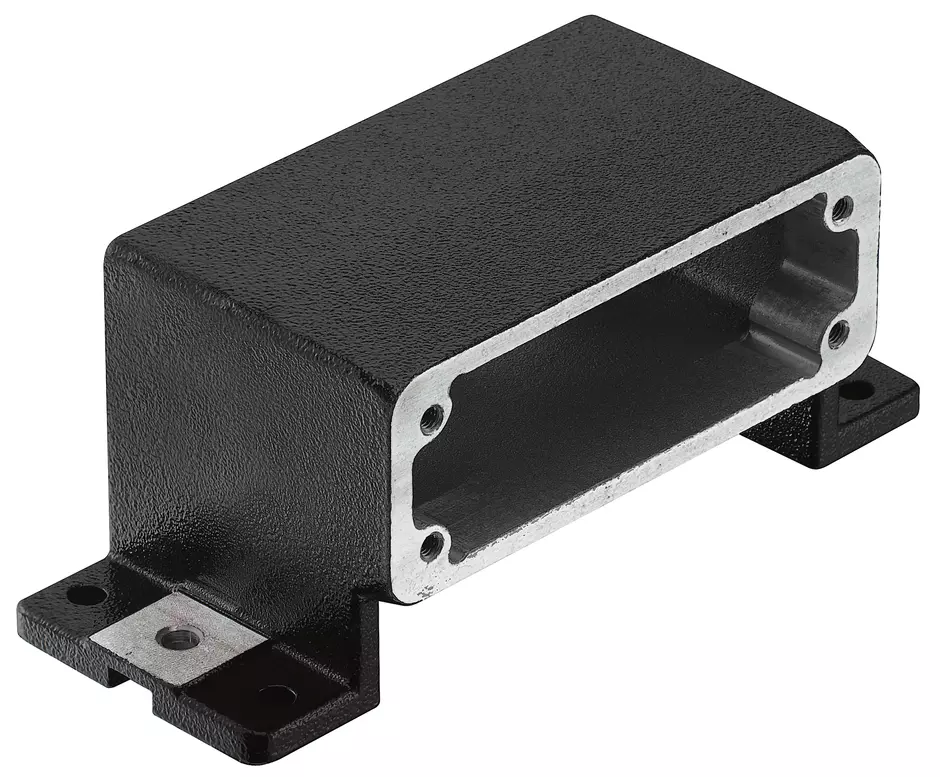

Han 24HPR-HSMA2-SL-M40-enlarged

Article No.: 19 40 024 0954

Image is for illustration purposes only. Please refer to product description.

Surface mounted housing

Article No.: 19 40 024 0954

to see prices and availability.

to see prices and availability.

Surface mounted housing

Horizontal version

Size: 24 HPR enlarged

Top entry

2x M40

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Identification

Version

Size	24 HPR enlarged
Version	Top entry
Number of cable entries	2
Cable entry	2x M40
Field of application	Hoods/housings for harsh outdoor environments
Details	Bulkhead mounted housing 09 40 024 0368 not included, please order separately
Details	When using Han^® Standard inserts of size B or Han-Modular^® hinged frames, please order adapter 09400009961 separately.

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Specifications and approvals

Commercial data

Packaging size	1
Net weight	645 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140173415
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
