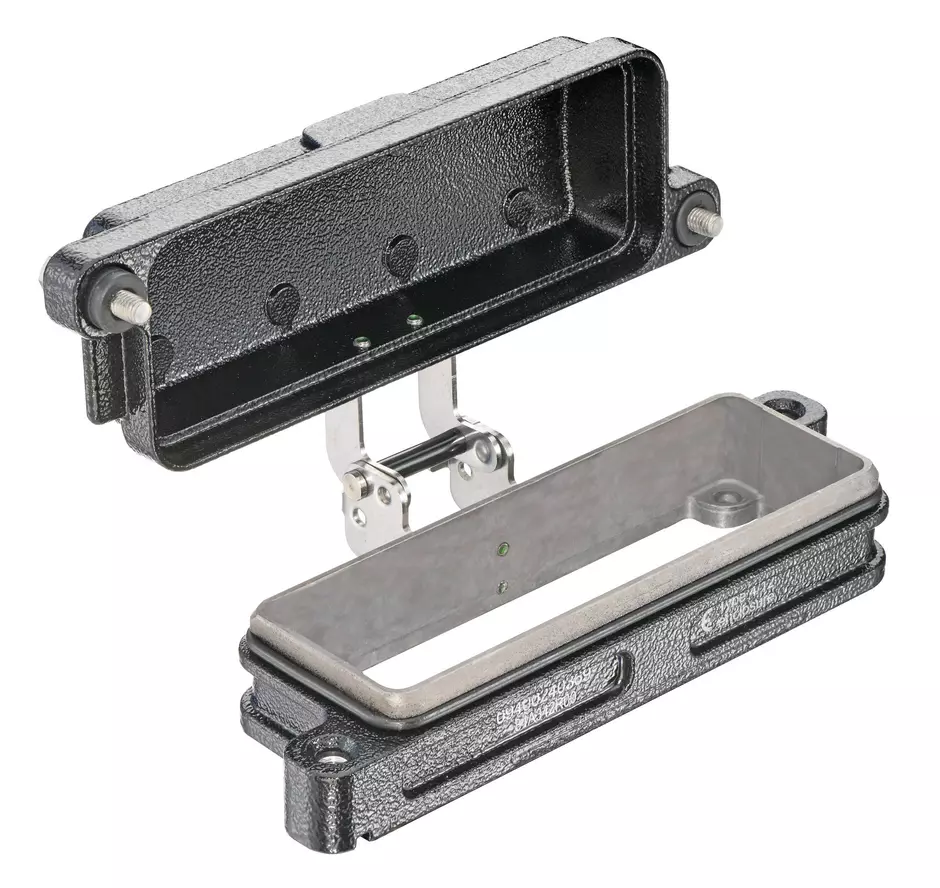

Han 24HPR-enlarged-HBM/CM-SCL

Article No.: 09 40 024 0369

New

Image is for illustration purposes only. Please refer to product description.

New

Bulkhead mounted housing

Article No.: 09 40 024 0369

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

With metal cover

Size: 24 HPR enlarged

Screw locking

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Material (seal): NBR

Identification

Version

Locking type	Screw locking
Size	24 HPR enlarged
Field of application	Hoods/housings for harsh outdoor environments
Details	When using Han^® Standard inserts of size B or Han-Modular^® hinged frames, please order adapter 09400009961 separately.

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque	[‌3 Nm] Fixing screws M6
Tightening torque (screw locking)	4 Nm
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	387 g
Country of origin	Germany
GTIN	5713140452275
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
