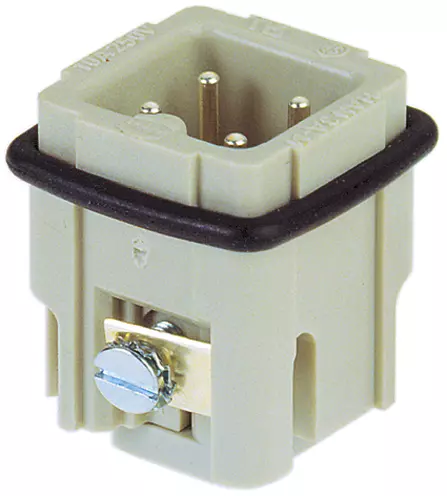

Han 3A M Insert Screw

Article No.: 09 20 003 2611

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 20 003 2611

to see prices and availability.

to see prices and availability.

Inserts

Screw termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Size: 3 A

Contacts: 3

Conductor cross-section: 0.75 ... 1.5 mm²

Copper alloy

Silver plated

Please no longer use this product for new design-ins.

You can use the successor.

Identification

Category	Inserts
Series	Han A^®

Version

Technical characteristics

Conductor cross-section (mm²)	0.75 ... 1.5 mm²
Rated current	‌ 10 A
Rated voltage conductor-earth	230 V
Rated voltage conductor-conductor	400 V
Rated impulse voltage	4 kV
Pollution degree	3
Rated voltage acc. to UL	600 V
Insulation resistance	>10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Stripping length	2.5 ... 5.5 mm
Tightening torque	‌0.25 Nm Contact screw M3
Recommended screw driver	Slotted 0.4 x 2.5
Recommended screw driver	Slotted 0.6 x 3.5
Mating cycles	≥ 500

Material properties

ECHA SCIP number	564b7d75-7bf6-4cfb-acb1-2168eb61b675
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	10
Net weight	14.24 g
Country of origin	Romania
GTIN	5713140038820
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
