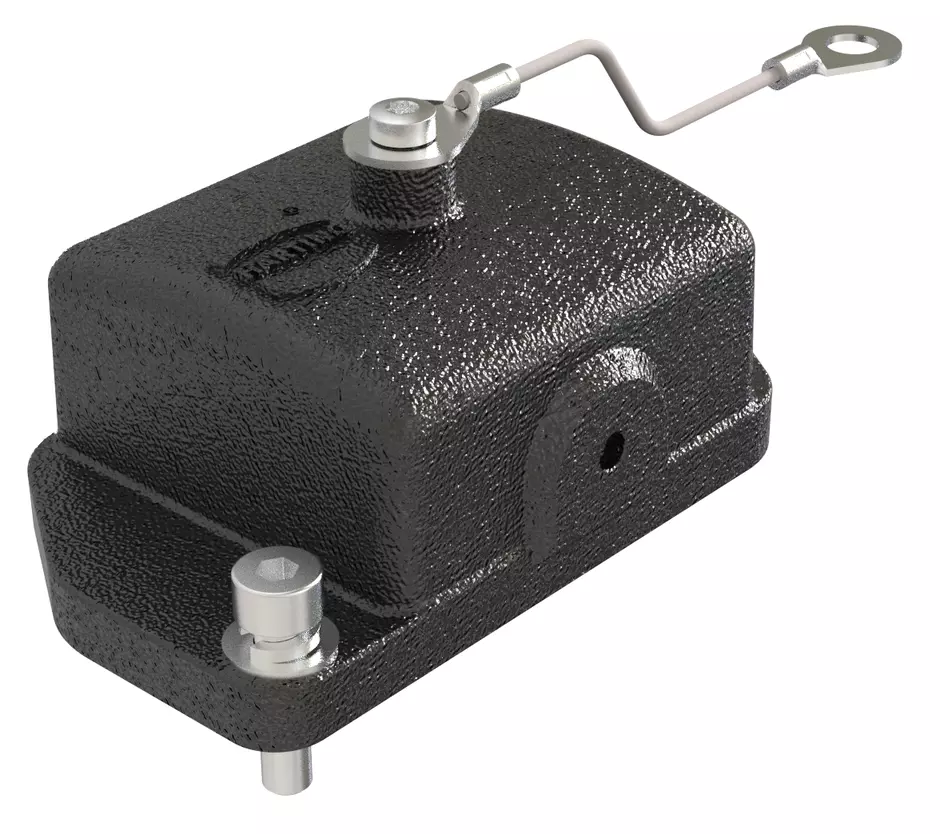

Han 4HPR-CM-SCL-f. HBM/HSM-cord, lug

Article No.: 09 40 004 5412

New

Image is for illustration purposes only. Please refer to product description.

New

Protection cover

Article No.: 09 40 004 5412

to see prices and availability.

to see prices and availability.

Protection cover

for bulkhead mounted housings, With fixing cord (cable shoe)

Size: 4 B

Screw locking

Stainless steel

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Degree of protection: IP65, IP68, IP69 / IPX9K acc. to ISO 20653

Identification

Category	Accessories
Series of hoods/housings	Han^® HPR
Type of accessory	Protection cover
Description of the accessory	for bulkhead mounted housings
Description of the accessory	With fixing cord (cable shoe)

Version

Locking type	Screw locking
Size	4 B

Technical characteristics

Limiting temperature	-40 ... +125 °C
Tightening torque (screw locking)	‌ 4 Nm
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	no requirements (flammable mass < 10g)
ELV status	compliant
California Proposition 65 substances	Not contained
PFAS	No
Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (locking)	Stainless steel

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Country of origin	China
eCl@ss	27440208 Cap for industrial connectors
