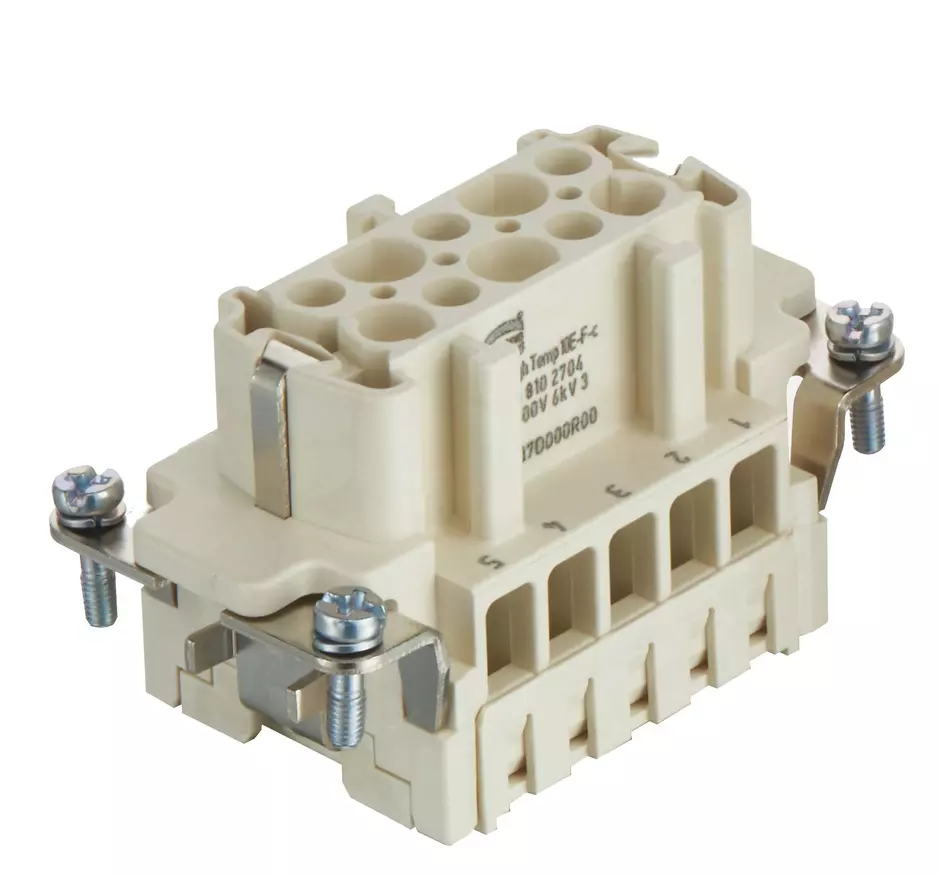

Han High Temp 10E-c Female

Article No.: 09 33 810 2704

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 810 2704

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Liquid crystal polymer (LCP)

Rated current: ‌16 A

Size: 10 B

Contacts: 10

Conductor cross-section: 0.5 ... 2.5 mm²

Identification

Category	Inserts
Series	Han E^® High Temp

Version

Termination method	Crimp termination
Gender	Female
Size	10 B
Number of contacts	10
PE contact	Yes
Details	Please order crimp contacts separately.

Technical characteristics

Conductor cross-section	0.5 ... 2.5 mm²
Conductor cross-section [AWG]	AWG 20 ... AWG 14
Rated current	‌ 16 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Insulation resistance	>10¹⁰ Ω
Tightening torque	‌1.2 Nm PE screw M4
Limiting temperature	-40 ... +200 °C With Han® High Temp components
Mating cycles	≥ 500

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	57.86 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140185869
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
