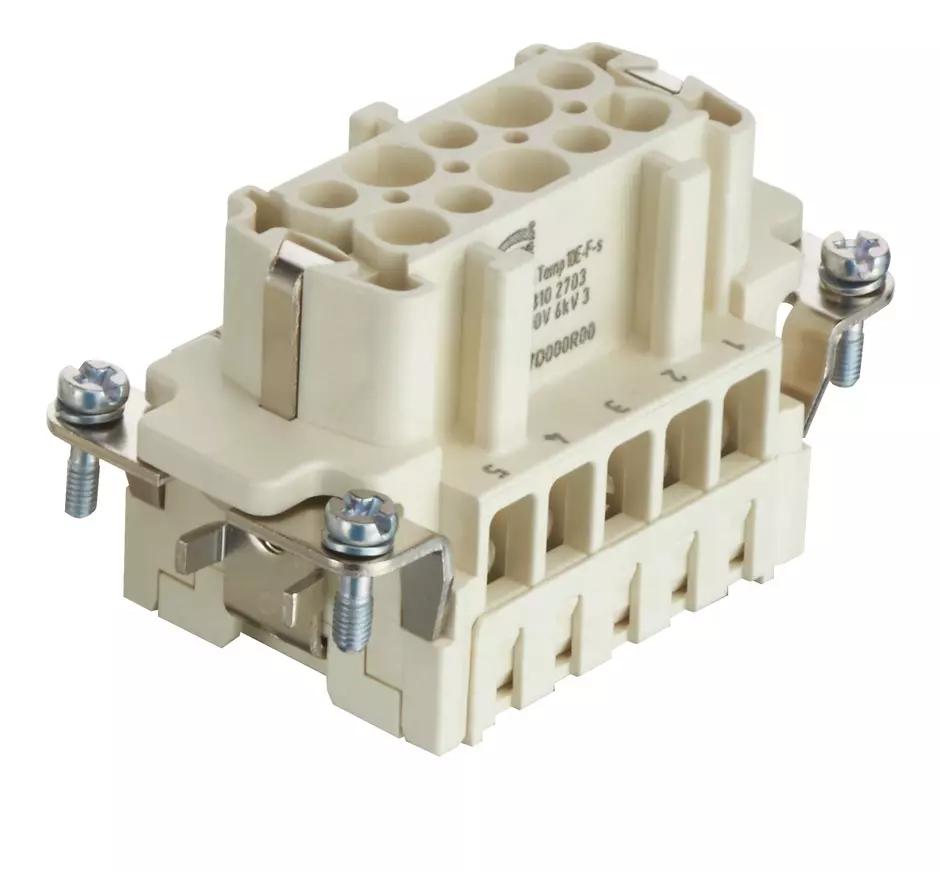

Han High Temp 10E-s Female

Article No.: 09 33 810 2703

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 810 2703

to see prices and availability.

to see prices and availability.

Inserts

Screw termination

Female

Liquid crystal polymer (LCP)

Rated current: ‌16 A

Size: 10 B

Contacts: 10

Conductor cross-section: 0.75 ... 2.5 mm²

Copper alloy

Silver plated

Identification

Category	Inserts
Series	Han E^® High Temp

Version

Technical characteristics

Conductor cross-section (mm²)	[0,75] ... [2,5 mm²]
Conductor cross-section (AWG)	AWG 18 ... AWG 14
Rated current	16 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Insulation resistance	>10¹⁰ Ω
Contact resistance	1 mΩ
Limiting temperature	[-40] ... [+200 °C] With Han® High Temp components
Stripping length	[7,5 mm]
Tightening torque	[‌0,5 Nm] Contact screw M3
	[‌0,5 Nm] Fixing screws M3
	[‌1,2 Nm] PE screw M4
Recommended screw driver	Slotted 0.6 x 3.5
	PH1
	PH2
Mating cycles	500

Material properties

ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Liquid crystal polymer (LCP)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	16.32 g
Country of origin	Romania
GTIN	5713140185982
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
