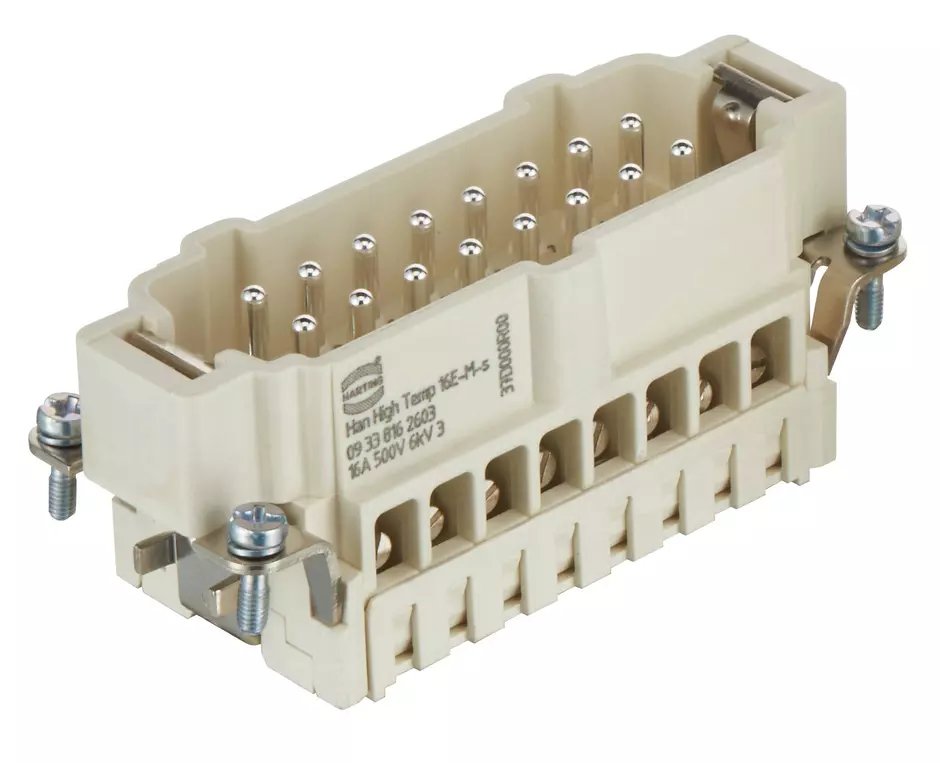

Han High Temp 16E-s Male

Article No.: 09 33 816 2603

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 816 2603

to see prices and availability.

to see prices and availability.

Inserts

Screw termination

Male

Liquid crystal polymer (LCP)

Rated current: ‌16 A

Size: 16 B

Contacts: 16

Conductor cross-section: 0.75 ... 2.5 mm²

Copper alloy

Silver plated

Identification

Category	Inserts
Series	Han E^® High Temp

Version

Technical characteristics

Conductor cross-section	0.75 ... 2.5 mm²
Conductor cross-section [AWG]	AWG 18 ... AWG 14
Rated current	‌ 16 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Insulation resistance	>10¹⁰ Ω
Contact resistance	≤ 1 mΩ
Stripping length	7.5 mm
Tightening torque	‌0.5 Nm Contact screw M3
	‌0.5 Nm Fixing screws M3
	‌1.2 Nm PE screw M4
Limiting temperature	-40 ... +200 °C With Han® High Temp components
Mating cycles	≥ 500

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	90 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140186019
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
