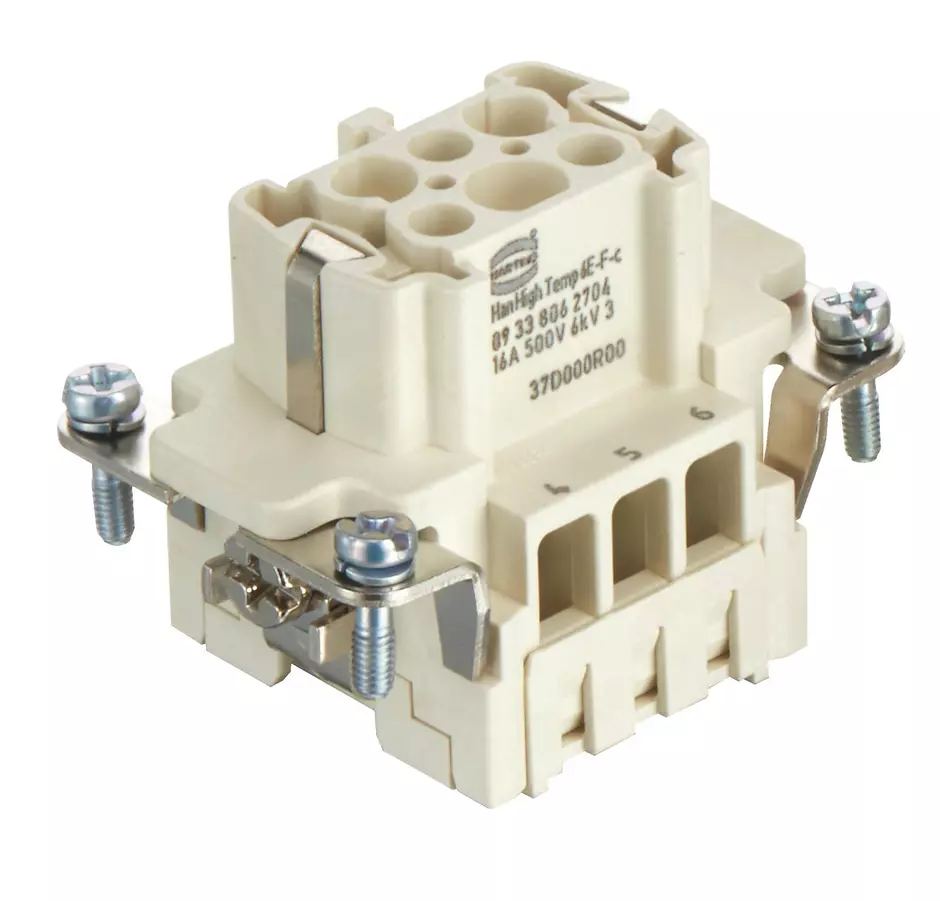

Han High Temp 6E-c Female

Article No.: 09 33 806 2704

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 806 2704

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Liquid crystal polymer (LCP)

Rated current: ‌16 A

Size: 6 B

Contacts: 6

Conductor cross-section: 0.5 ... 2.5 mm²

Identification

Category	Inserts
Series	Han E^® High Temp

Version

Termination method	Crimp termination
Gender	Female
Size	6 B
With wire protection	false
Number of contacts	6
PE contact	true
Details	Please order crimp contacts separately.

Technical characteristics

Conductor cross-section (mm²)	[0,5] ... [2,5 mm²]
Conductor cross-section (AWG)	AWG 20 ... AWG 14
Rated current	16 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Insulation resistance	>10¹⁰ Ω
Limiting temperature	[-40] ... [+200 °C] With Han® High Temp components
Tightening torque	[‌1,2 Nm] PE screw M4
Recommended screw driver	Slotted 0.8 x 4.5
Recommended screw driver	PH2
Mating cycles	500

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Material (insert)	Liquid crystal polymer (LCP)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	47.5 g
Country of origin	Romania
GTIN	5713140185838
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
