Han K 8/24 Pos. M Insert Crimp

Article No.: 09 38 032 3001

Configurable

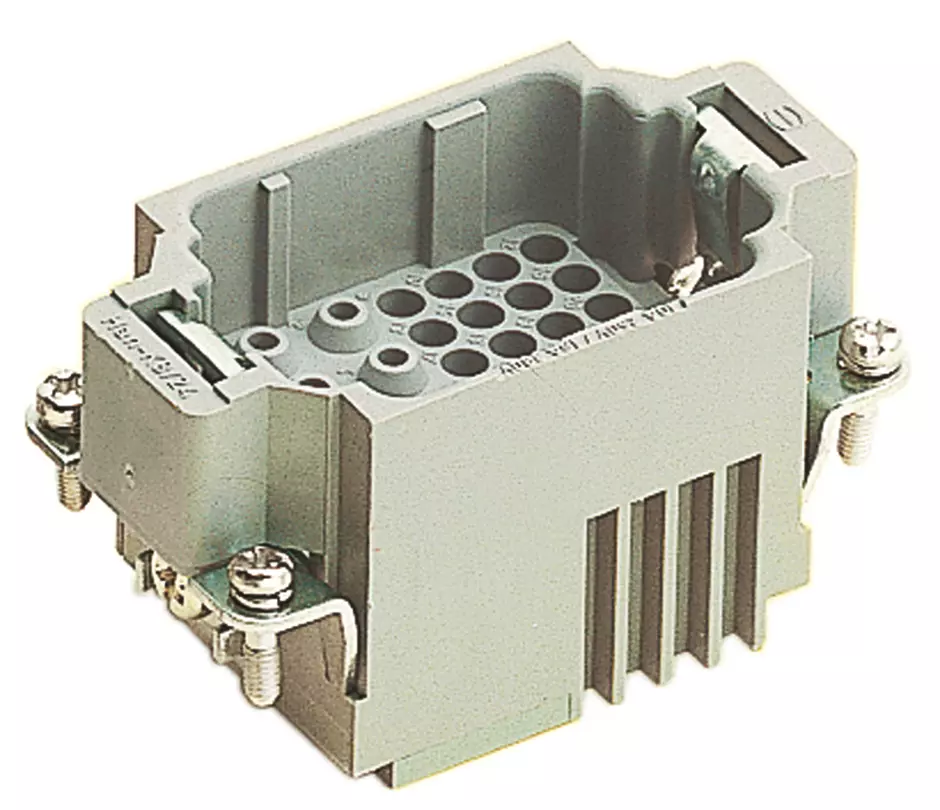

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 38 032 3001

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Male

Polyamide (PA)

RAL 7032 (pebble grey)

Rated current: ‌16 A

Size: 10 B

Contacts: 32

Conductor cross-section: 0.5 ... 4 mm² Power 0.14 ... 2.5 mm² Signal

Identification

Version

Termination method	Crimp termination
Gender	Male
Size	10 B
Number of contacts	32
Number of signal contacts	24
Number of power contacts	8
PE contact	Yes
Details	Please order crimp contacts separately.

Technical characteristics

Conductor cross-section	0.5 ... 4 mm² Power
Conductor cross-section	0.14 ... 2.5 mm² Signal
Rated current	‌ 16 A
Rated voltage conductor-earth	230 V
Rated voltage conductor-conductor	400 V
Rated impulse voltage	4 kV
Pollution degree	3
Rated current (signal)	10 A
Rated voltage (signal)	160 V
Rated impulse voltage (signal)	2.5 kV
Pollution degree (signal)	3
Rated current acc. to UL	16 A
Rated voltage acc. to UL	600 V
Rated current acc. to UL (signal)	10 A
Rated voltage acc. to UL (signal)	600 V
Rated current acc. to CSA	16 A
Rated voltage acc. to CSA	300 V
Rated current acc. to CSA (signal)	10 A
Rated voltage acc. to CSA (signal)	300 V
Insulation resistance	>10¹⁰ Ω
Tightening torque	‌1.2 Nm PE screw M4
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	HB
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	51.4 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140056473
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
