Han MPC60_B_BS_2/4_F

Article No.: 97 00 000 5827

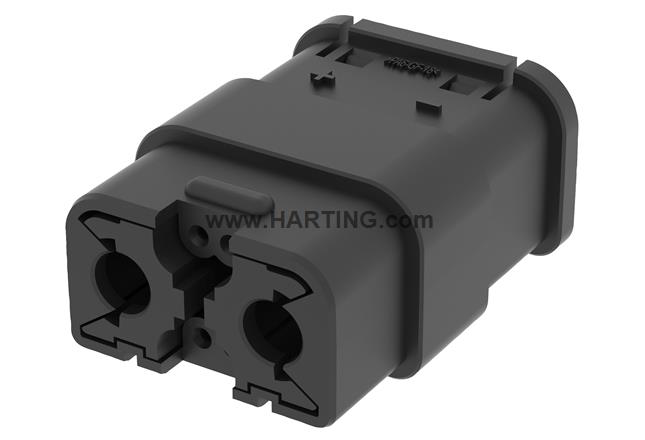

Image is for illustration purposes only. Please refer to product description.

Connector sets

Article No.: 97 00 000 5827

to see prices and availability.

to see prices and availability.

Connector sets

Crimp termination

Degree of protection: IP40 mated condition

Identification

Version

Termination method	Crimp termination
Details	Please order crimp contacts separately.
	Not be coupled or decoupled under electrical load.
	Processing must only be carried out by trained personnel!
	Basic insulation between power and signal contacts
	Connector must not be powered-up in the unmated condition.

Technical characteristics

Conductor cross-section (mm²)	4 ... 10 mm² Power
Conductor cross-section (AWG)	AWG 26 ... AWG 23 Signal
Rated voltage (power)	120 V DC
Rated current (power)	max. 350 A for 10 s (Han® C 10 mm²)
Rated current (signal)	1 A
Rated voltage (signal)	5 V
Rated impulse voltage (signal)	0.5 kV
Pollution degree (signal)	3
Rated current (power)	60 A
Rated impulse voltage (power)	2.5 kV
Pollution degree (power)	3
Limiting temperature	-40 ... +90 °C
Mating cycles	500
Degree of protection acc. to IEC 60529	IP40 mated condition

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-2)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained

Commercial data

European customs tariff number	85389099
Packaging size	10
Net weight	6 g
Country of origin	India
eCl@ss	27440113 Rectangular connectors (set)
