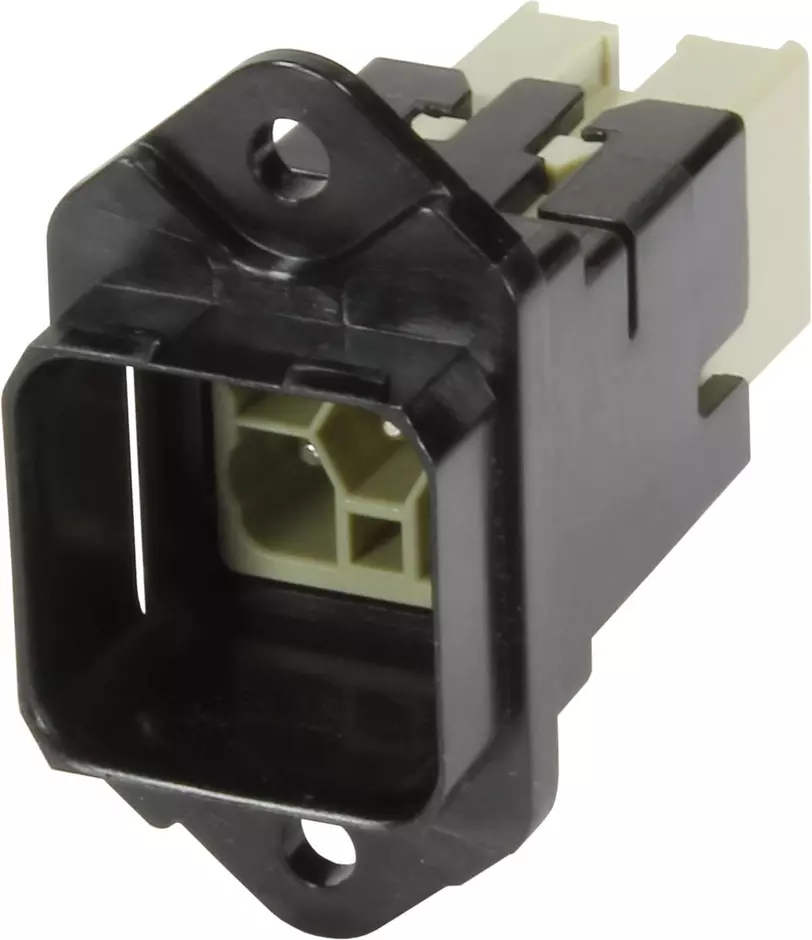

Han PP PFT plastic rect. crimp power

Article No.: 09 35 231 0331

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 35 231 0331

to see prices and availability.

to see prices and availability.

Connectors

Panel feed trough set

Crimp termination

Rated current: ‌16 A

Contacts: 5

Silver plated

PushPull

Material: Polycarbonate (PC)

Degree of protection: IP65, IP67

Identification

Category	Connectors
Identification	Power
Element	Panel feed trough set
Series	Han® PushPull (V14)
Features	Intuitive locking mechanism

Version

Termination method	Crimp termination
Locking type	PushPull
Shielding	Unshielded
Number of contacts	5
PE contact	false
Pack contents	incl. bulkhead mounted housing and male insert
Pack contents	Without contacts

Technical characteristics

Conductor cross-section (mm²)	0.25 ... 2.5 mm²
Conductor cross-section (AWG)	AWG 22 ... AWG 12
Rated current	16 A
Rated voltage	690 V
Rated impulse voltage	8 kV
Pollution degree	3
Rated voltage acc. to UL	600 V
Limiting temperature	[-40] ... [+70 °C]
Mating cycles	500
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Vibration resistance	5-150 Hz, 5 g, 0.35 mm, 2h/axis
Shock resistance	5 g / 30 ms, 3 shocks / axis and direction

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polycarbonate (PC)
Colour (insert)	Grey
Surface (contacts)	Silver plated
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	10.22 g
Country of origin	Germany
GTIN	5713140054165
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
