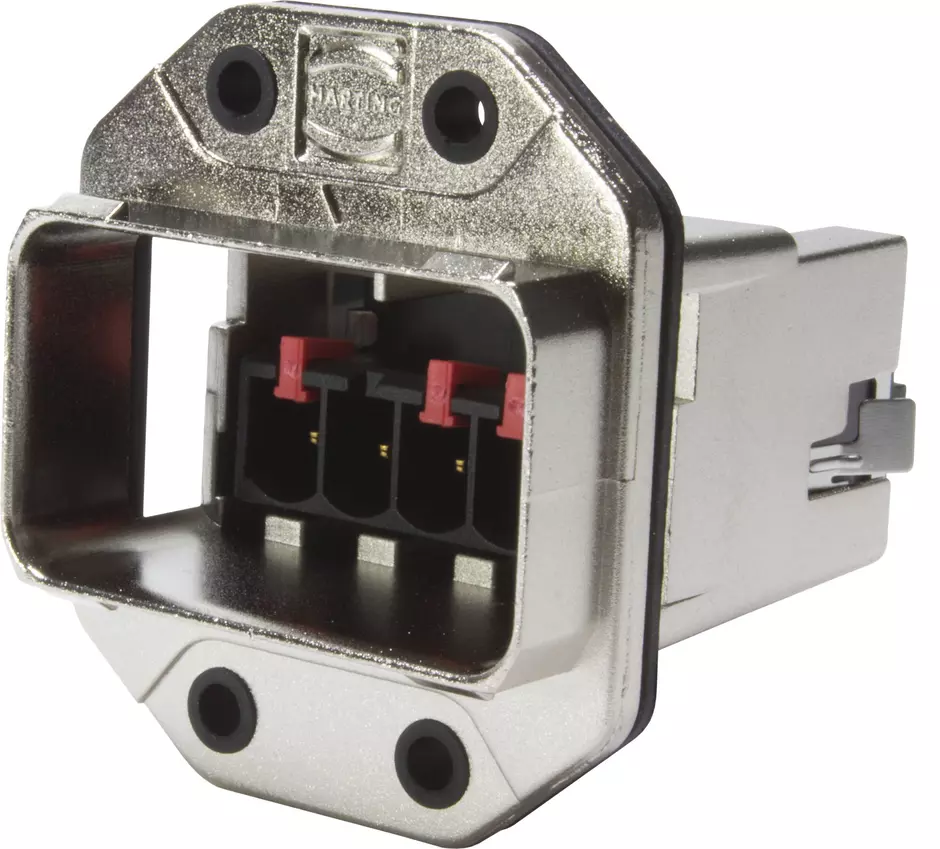

Han PP Power L metal PFT var coding

Article No.: 09 35 434 0311

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 35 434 0311

to see prices and availability.

to see prices and availability.

Connectors

Panel feed trough set AIDA compliant, With variable coding

Spring clamp termination

Rated current: ‌16 A

Contacts: 5

Copper alloy

Au over Ni Mating side, Sn over Ni Termination side

PushPull

Material: Zinc die-cast

Nickel plated

Degree of protection: IP65, IP67

Identification

Category	Connectors
Identification	Power L
Element	Panel feed trough set
Specification	AIDA compliant
Specification	With variable coding
Series	Han® PushPull (V14)
Features	Intuitive locking mechanism
Features	Field assembly without tools

Version

Termination method	Spring clamp termination
Locking type	PushPull
Shielding	Unshielded
Number of contacts	5
PE contact	false
Pack contents	incl. bulkhead mounted housing and male insert

Technical characteristics

Conductor cross-section (mm²)	0.75 ... 2.5 mm²
Conductor cross-section (AWG)	AWG 18 ... AWG 13
Rated current	16 A
Rated voltage	24 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Limiting temperature	[-40] ... [+70 °C]
Stripping length	10 mm Conductors
Stripping length	44 mm cable jacket
Tightening torque	‌3 Nm
Mating cycles	100
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Vibration resistance	10-150 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
Shock resistance	30 g / 11 ms, 3 shocks / axis and direction

Material properties

China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Material (seal)	NBR
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	55.8 g
Country of origin	Vietnam
GTIN	5713140223905
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
