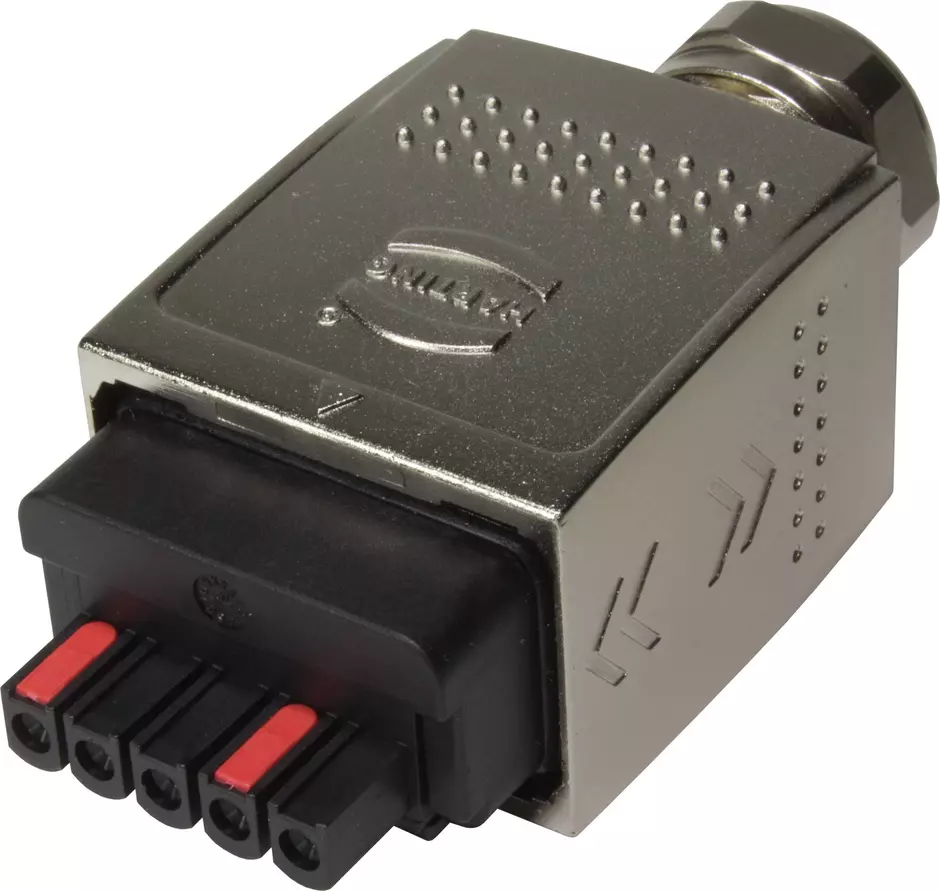

Han PP Power L metal plug var cod 9-13mm

Article No.: 09 35 434 0401

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 35 434 0401

to see prices and availability.

to see prices and availability.

Connectors

Connector sets AIDA compliant, With variable coding

Spring clamp termination

Rated current: ‌16 A

Contacts: 5

Copper alloy

Au over Ni Mating side, Sn over Ni Termination side

PushPull

Clamping range: 9 ... 13 mm

Material: Zinc die-cast

Nickel plated

Degree of protection: IP65, IP67

Identification

Category	Connectors
Series	Han^® PushPull (V14)
Identification	Power L
Element	Connector sets
Specification	AIDA compliant
Specification	With variable coding
Features	Intuitive locking mechanism
Features	Field assembly without tools

Version

Termination method	Spring clamp termination
Shielding	Unshielded
Number of contacts	5
Locking type	PushPull
Details	When installing a PROFINET system, observe the PROFINET installation guideline.
Pack contents	incl. metal housing and female insert

Technical characteristics

Conductor cross-section	0.75 ... 2.5 mm²
Conductor cross-section [AWG]	AWG 18 ... AWG 13
Rated current	‌ 16 A
Rated voltage	24 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Stripping length	10 mm Conductors
Stripping length	44 mm cable jacket
Tightening torque	‌3 Nm
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Clamping range	9 ... 13 mm
Vibration resistance	10-150 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
Shock resistance	30 g / 11 ms, 3 shocks / axis and direction

Material properties

Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Colour (hood/housing)	silver
Material (O-ring)	NBR
Material (internal seal)	NBR
Material (cable seal)	NBR
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	564b7d75-7bf6-4cfb-acb1-2168eb61b675
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Net weight	118.04 g
Country of origin	Vietnam
European customs tariff number	85366990
GTIN	5713140223868
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
