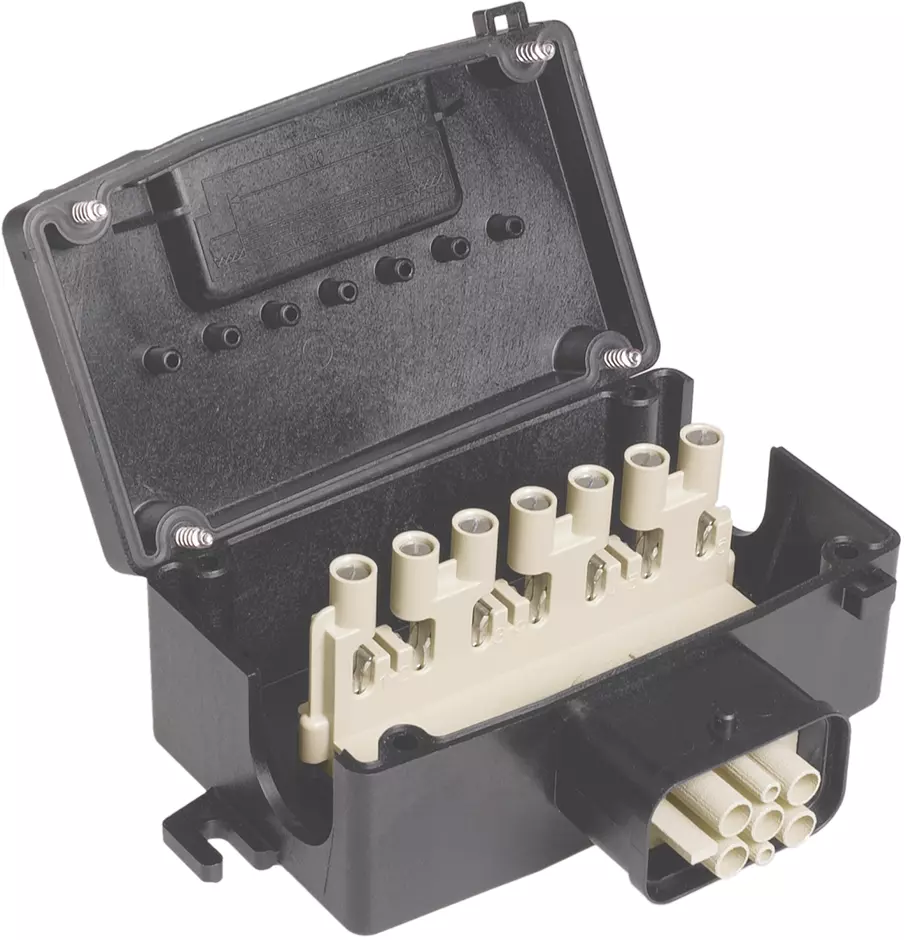

Han-Power S with 1x Han Q4/2-F; 2.5-4mm²

Article No.: 09 12 008 4804

Image is for illustration purposes only. Please refer to product description.

Energy distributor

Article No.: 09 12 008 4804

to see prices and availability.

to see prices and availability.

Energy distributor

With 1x Han® Q 4/2, Female insert, in Han-Compact® Hoods

IDC insulation displacement termination, for stranded wires according to IEC 60228 Class 5

Contacts: 6

Conductor cross-section: 2.5 ... 4 mm²

Material (hood/housing): Polycarbonate (PC)

RAL 9005 (jet black)

Degree of protection: IP65

Identification

Version

Termination method	IDC insulation displacement termination
Termination method	for stranded wires according to IEC 60228 Class 5
Number of contacts	6
Number of signal contacts	2
Number of power contacts	4
PE contact	Yes

Technical characteristics

Conductor cross-section	2.5 ... 4 mm²
Rated current	‌ 40 A
Rated voltage conductor-earth	400 V
Rated voltage conductor-conductor	690 V
Rated impulse voltage	6 kV
Pollution degree	3
Rated current (signal)	10 A
Rated voltage (signal)	250 V
Rated impulse voltage (signal)	4 kV
Pollution degree (signal)	3
Rated voltage acc. to UL	600 V
Rated voltage acc. to UL (signal)	250 V
Insulation resistance	>10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65

Material properties

Material (contacts)	Copper alloy
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
Material (locking)	Polyamide (PA)
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	564b7d75-7bf6-4cfb-acb1-2168eb61b675
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	326 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140017887
eCl@ss	27142409 Small distribution board
ETIM	EC000214
UNSPSC 24.0	39121303
