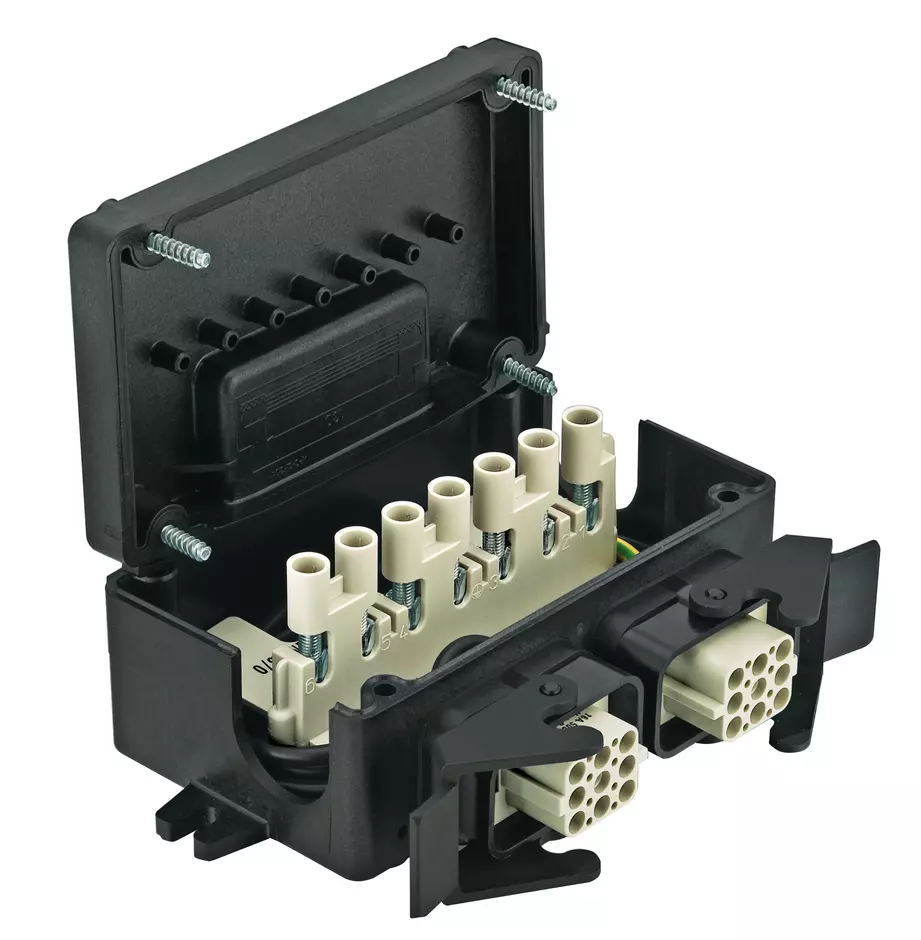

Han-Power S with 2x Han Q8/0-F 2.5-4 mm²

Article No.: 09 12 008 4802

Image is for illustration purposes only. Please refer to product description.

Energy distributor

Article No.: 09 12 008 4802

to see prices and availability.

to see prices and availability.

Energy distributor

With 2x Han® Q 8/0, Female insert, in Han-Compact® Housings, bulkhead mounting

IDC insulation displacement termination, for stranded wires according to IEC 60228 Class 5

Contacts: 6

Conductor cross-section: 2.5 ... 4 mm²

Material (hood/housing): Polycarbonate (PC)

RAL 9005 (jet black)

Degree of protection: IP65

Identification

Category	Energy distributors
Series of hoods/housings	Han-Power® S
Element	Energy distributor
Specification	With 2x Han^® Q 8/0
	Female insert
	in Han-Compact^® Housings, bulkhead mounting

Version

Termination method	IDC insulation displacement termination
Termination method	for stranded wires according to IEC 60228 Class 5
Number of contacts	6
PE contact	Yes

Technical characteristics

Conductor cross-section (mm²)	2.5 ... 4 mm²
Rated current	25 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Rated voltage acc. to UL	600 V
Insulation resistance	>10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Mating cycles	500
Degree of protection acc. to IEC 60529	IP65

Material properties

ECHA SCIP number	2d63e3a4-7abb-4e67-bb13-55bff2df44a0
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (contacts)	Copper alloy
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
Material (locking)	Polyamide (PA)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	312.67 g
Country of origin	Romania
GTIN	5713140017863
eCl@ss	27142409 Small distribution board
ETIM	EC000214
UNSPSC 24.0	39121303
