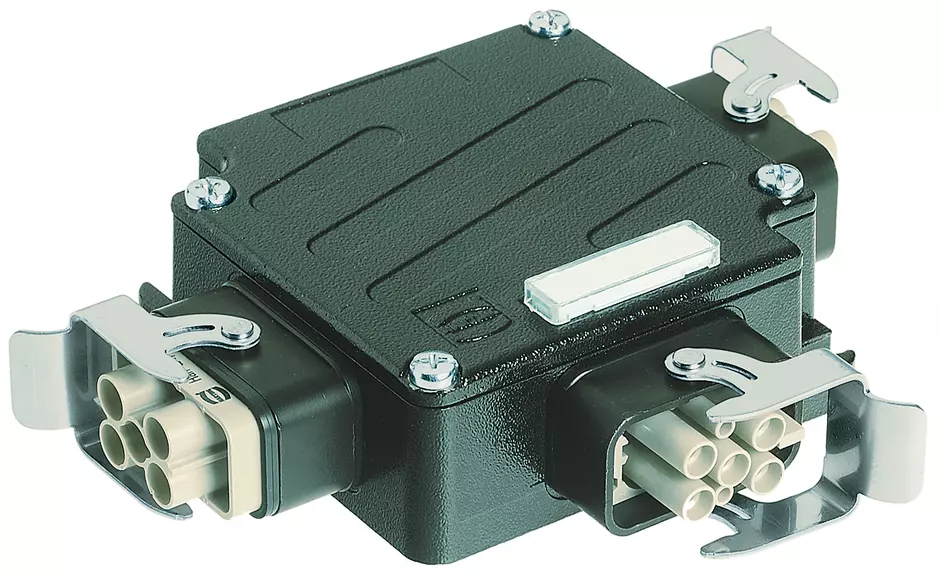

Han-Power T Metall Han Q 4/2

Article No.: 09 12 008 4720

Image is for illustration purposes only. Please refer to product description.

Energy distributor

Article No.: 09 12 008 4720

to see prices and availability.

to see prices and availability.

Energy distributor

With 3x Han® Q 4/2, in Han-Compact® Housings, bulkhead mounting

Contacts: 6

Material (hood/housing): Zinc die-cast

RAL 9005 (jet black)

Identification

Category	Energy distributors
Series of hoods/housings	Han-Power^® T
Element	Energy distributor
Specification	With 3x Han^® Q 4/2
Specification	in Han-Compact^® Housings, bulkhead mounting
Features	Finger safe contacts

Version

Technical characteristics

Rated current	‌ 40 A
Rated voltage conductor-earth	400 V
Rated voltage conductor-conductor	690 V
Rated impulse voltage	6 kV
Pollution degree	3
Rated current (signal)	10 A
Rated voltage (signal)	250 V
Rated impulse voltage (signal)	4 kV
Pollution degree (signal)	3
Rated voltage acc. to UL	600 V
Rated voltage acc. to UL (signal)	250 V
Rated voltage acc. to CSA	250 V
Insulation resistance	>10⁸ Ω
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500

Material properties

Material (contacts)	Copper alloy
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
Material (locking)	Stainless steel
Material flammability class acc. to UL 94	V-0
RoHS	not compliant
ELV status	not compliant
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	855.7 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140017795
eCl@ss	27142409 Small distribution board
ETIM	EC000214
UNSPSC 24.0	39121303
